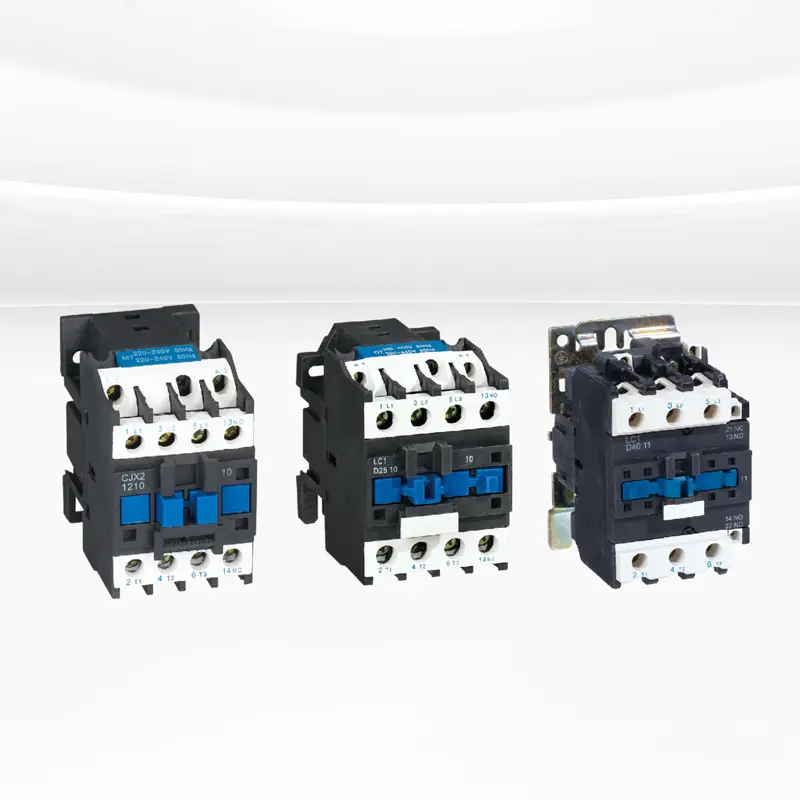

China LC1, CJ40 AC Contactor Enhances System Safety Supplier, Factory

LC1-D series AC contactors are suitable for using 50Hz or 60Hz rated rated voltage up to 660V rated current up to 95A. It is mainly used for making/breaking electric circuits at a long distance and for frequent starting/stopping and control AC motors. Combined with the auxiliary contact group, air delayer, machine inter- locking device etc. It is combined into the delay contactor. Mechanical inter locking contactor star-triangle starter with the thermal relay.lt is combined into the electromagnetic starter mechanical.

Send Inquiry

Product Description

Application

LC1-D series AC contactors (hereinafter referred to as simplified AC contactors) are suitable for 50Hz or 60Hz power supply frequencies, with rated voltages up to 660V and rated currents up to 95A. This type of contactor is mainly used for remote control circuit connection and disconnection, and can frequently start and stop AC motors to meet the needs of industrial automation and electrical control systems.

The design of the LC1-D series contactor enables it to be used in combination with accessories such as auxiliary contact groups, air delay devices, and mechanical interlocking devices to form a time-delay contactor. This combination not only improves the flexibility of the circuit, but also enhances the safety and reliability of the system. The mechanical interlocking contactor can be used in combination with a star-delta starter and a thermal relay to form the mechanical structure of an electromagnetic starter. This configuration can effectively reduce the starting current during the motor starting process, extend the service life of the equipment, and improve the operating efficiency of the overall system.

LC1-D series AC contactors are widely used in various industrial equipment and automation systems due to their high performance and versatility, providing a reliable solution for electrical control.

Model Meaning

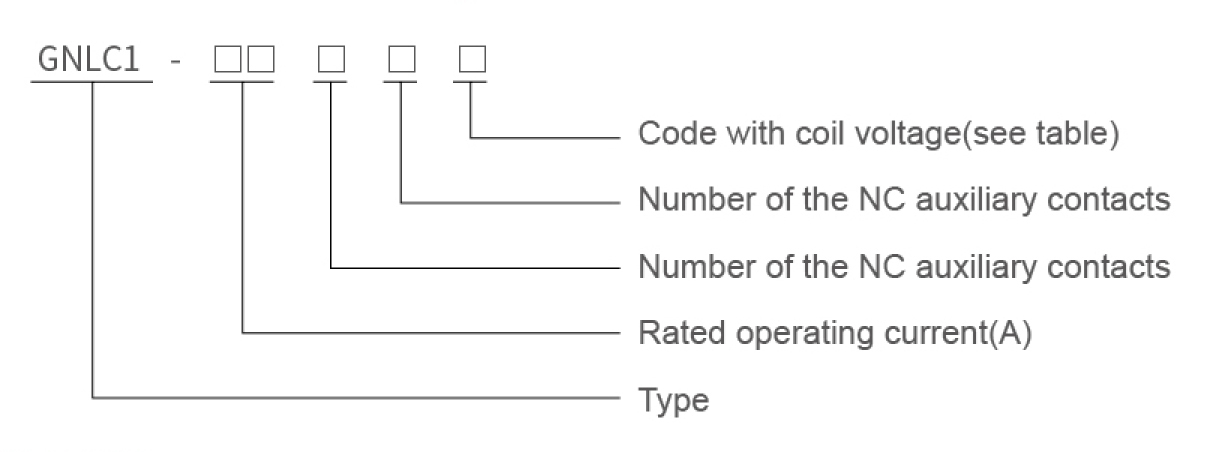

LC1-D series AC contactor model definition and meaning chart

Technical Parameter

Type	GNLC1-9	GNLC1-12	GNLC1-18	GNLC1-25	GNLC1-32	GNLC1-40	GNLC1-50	GNLC1-65	GNLC1-80	GNC1-95
Rated insulation (V)	660	660	660	660	660	660	660	660	660	660
Conventional thermal current(A)	20	25	32	40	50	60	75	80	110	125
Rated operational current 380V AC3	9	12	16	25	32	40	50	63	80	95
Controlled power(kW)	2.2	3	4	5.5	-	11	15	18.5	22	25
	4	5.5	7.5	11	-	18.5	22	30	37	45
	4	5.5	9	11	-	22	25	37	45	45
	4	5.5	9	11	-	22	30	37	45	45
	5.5	7.5	10	15	-	30	33	37	45	45
Note	1. Screw installation. 2. The installation of the relays can use two screws and also use the 35mm installation rail.					1. Screw installation. 2. The installation of the relays can use three screws and also use the 75mm or 35mm installation rail.

Frequently Asked Questions (FAQ)

Q What are the primary applications of the LC1-D series AC contactors?

LC1-D series AC contactors are designed for remote control circuit connection and disconnection. They frequently start and stop AC motors in industrial automation and electrical control systems.

Q What are the supported power frequencies and voltage ratings?

These contactors are suitable for 50Hz or 60Hz power supply frequencies, supporting rated insulation voltages up to 660V and rated currents up to 95A.

Q Can these contactors be combined with other accessories?

Yes. The design allows combinations with auxiliary contact groups, air delay devices, and mechanical interlocking devices to form time-delay contactors.

Q How does a mechanical interlocking configuration improve operation efficiency?

When combined with a star-delta starter and thermal relay, it forms an electromagnetic starter structure. This configuration reduces the starting current of motors, extends equipment life, and boosts efficiency.

Q What installation methods are supported by the GNLC1/GNC1 relays?

Depending on the type, they support screw installation (using 2 or 3 screws) as well as mounting on standard 35mm or 75mm installation DIN rails.
