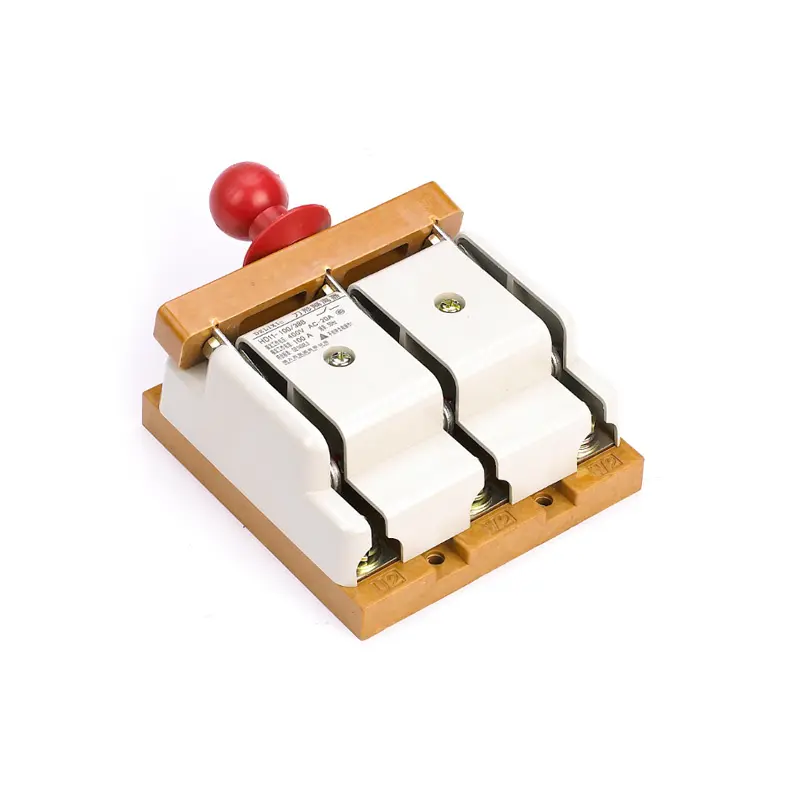

ODM HD Series Knife Isolator Supplier, Manufacturers

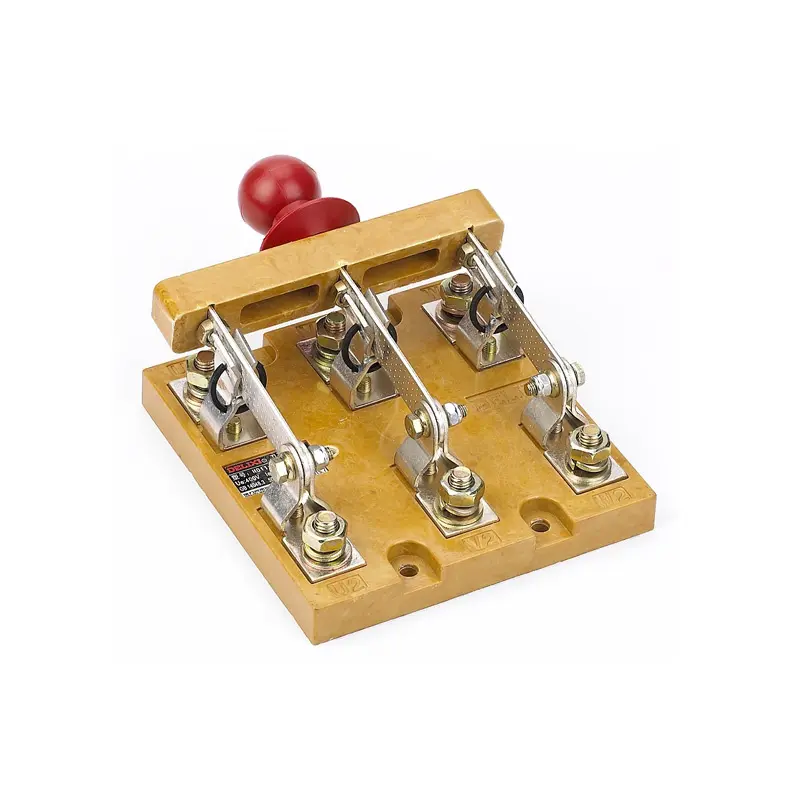

The HD series knife switch is suitable for use in complete power distribution equipment with AC 50Hz, rated voltage up to 380V (690V) and below, and rated current up to 6000A. It is used for infrequent manual connection and disconnection of circuits or as an isolation switch.

Send Inquiry

Product Description

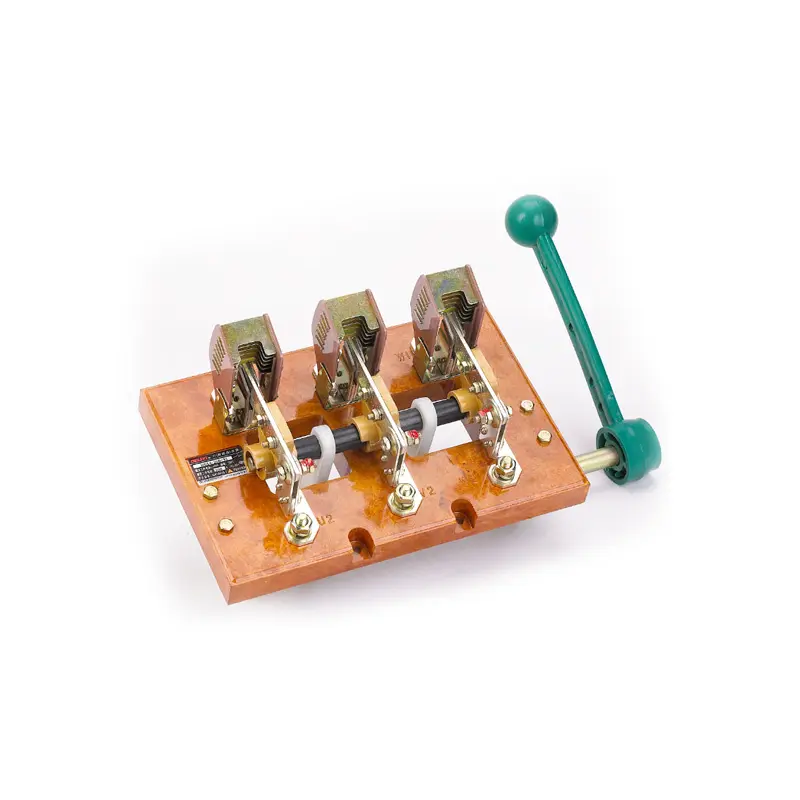

Single Throw HD Blade Isolator

Selection Guide

Product Name	Current	Poles	Arc Cover	Protective Cover	Base Plate	Operating Mechanism	Methods
HD14	63	3	1	B	B	BX	Q
HD11 / HD12 / HD13 / HD14	63A - 4000A	3P / 4P	1: With hood 0: Without hood	B: Protective cover	B: Glass plate J: Plastic plate	BX: Rotary Default: Normal	Q: Front operation Z: Left operation

Technical Parameters

Model	HD14	HD13 / HD13BX	HD12	HD11
Current Specification (A)	63~1500	63~4000	63~1500	63~1500
Voltage (V)	400 / 690 / 1140
Standards	GB/T 14048.3, IEC 60947-3, CCC

Double Throw HS Blade Switch Isolator

Selection Guide

Product Name	Current	Poles	Wiring Method	Base Plate Type	Special Types
HS11 / HS12 / HS13 / HS14	63A - 3000A	3P / 4P	Front/Back Wiring (HD11) With/Without Arc Hood	B: Glass plate J: Plastic plate	P: Plate BX: Rotary mechanism

Technical Parameters

Model	HS13 / HS13BX	HS 11
Current Specification (A)	63~3000	63~1500
Voltage (V)	400 / 690 / 1140
Certification	GB/T 14048.3, IEC 60947-3, CCC

Appearance and Installation Dimensions

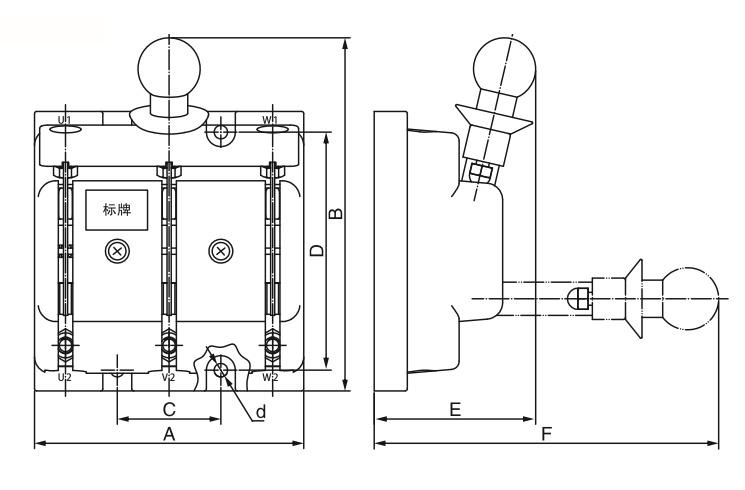

HD11-100 installation dimensions

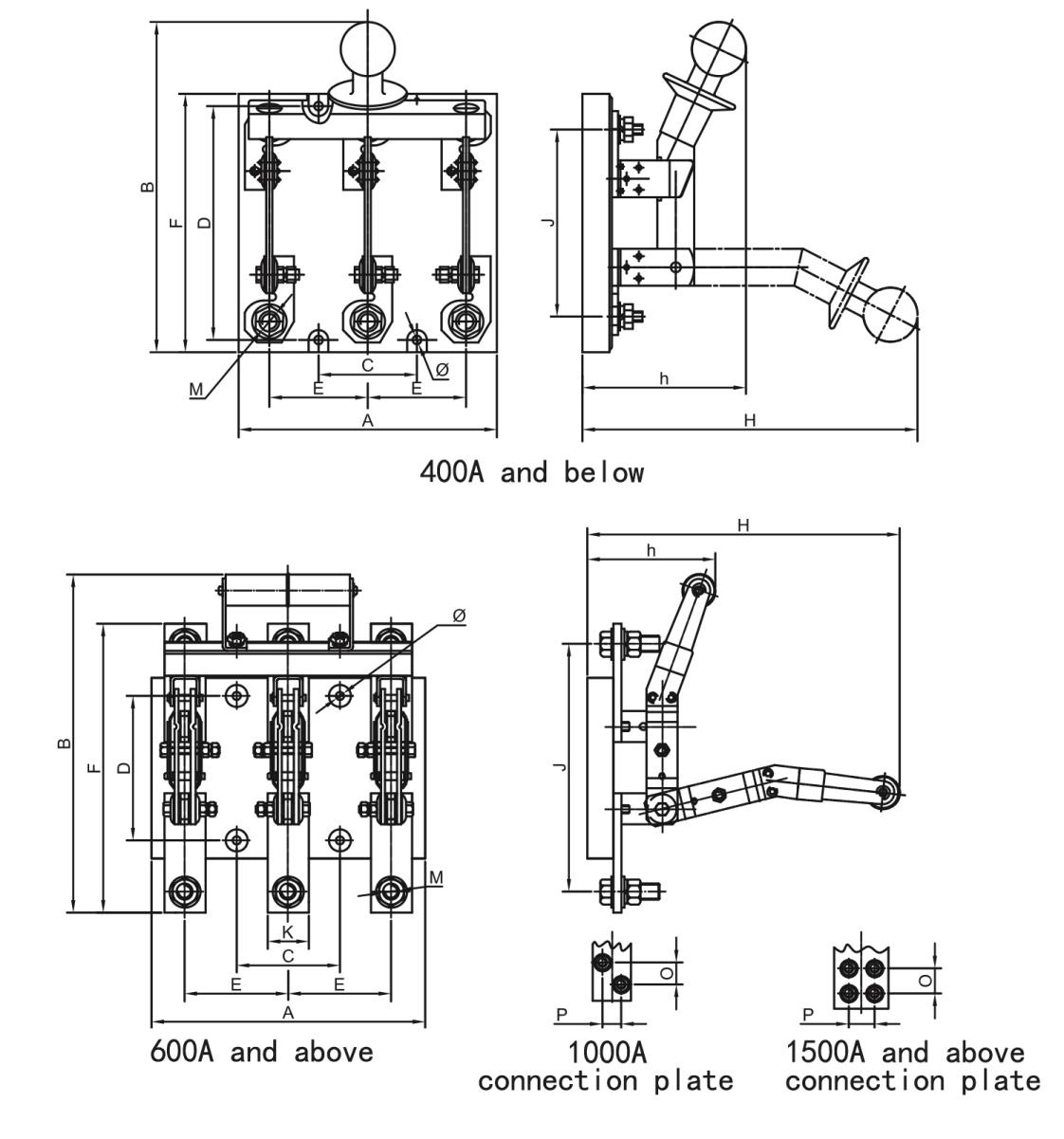

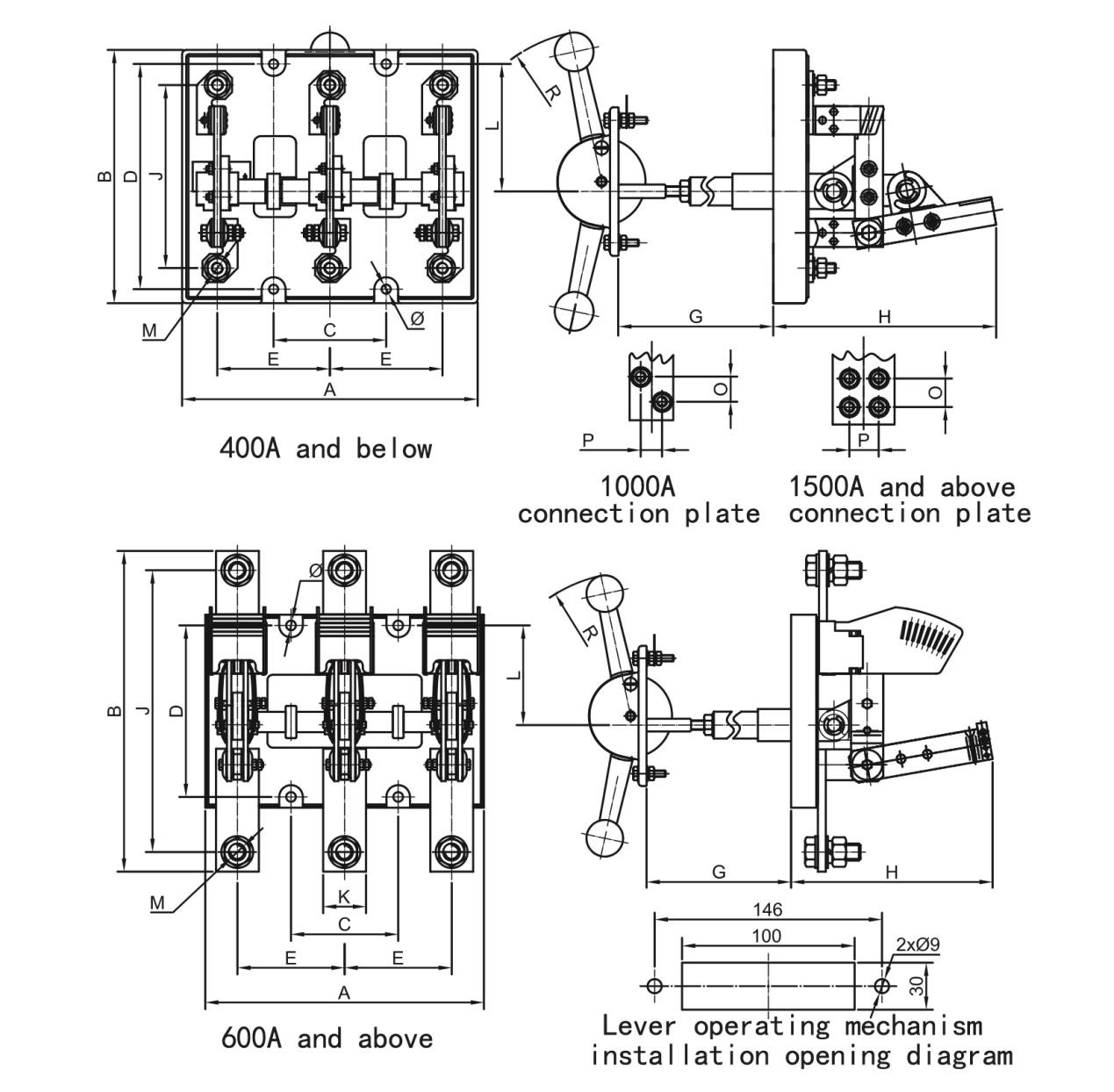

HD11 central handle panel front wiring

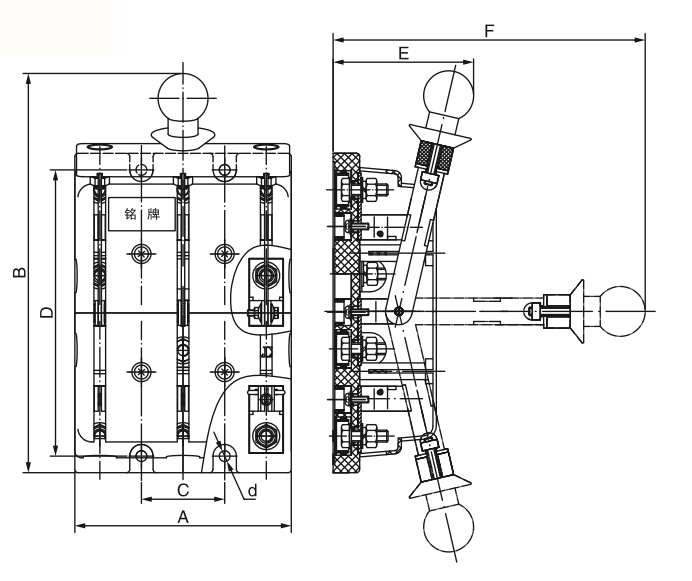

HS11-100 appearance dimensions

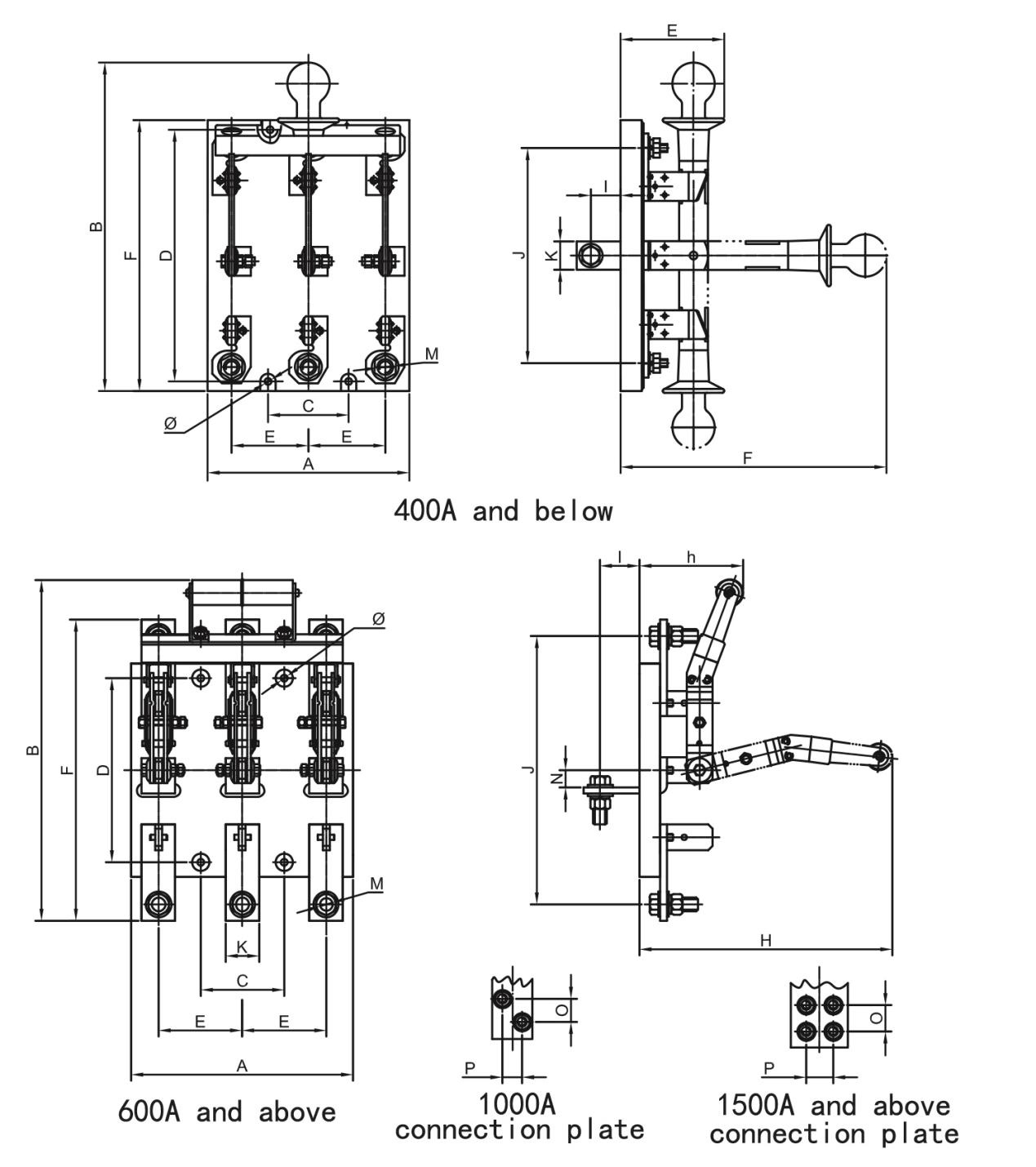

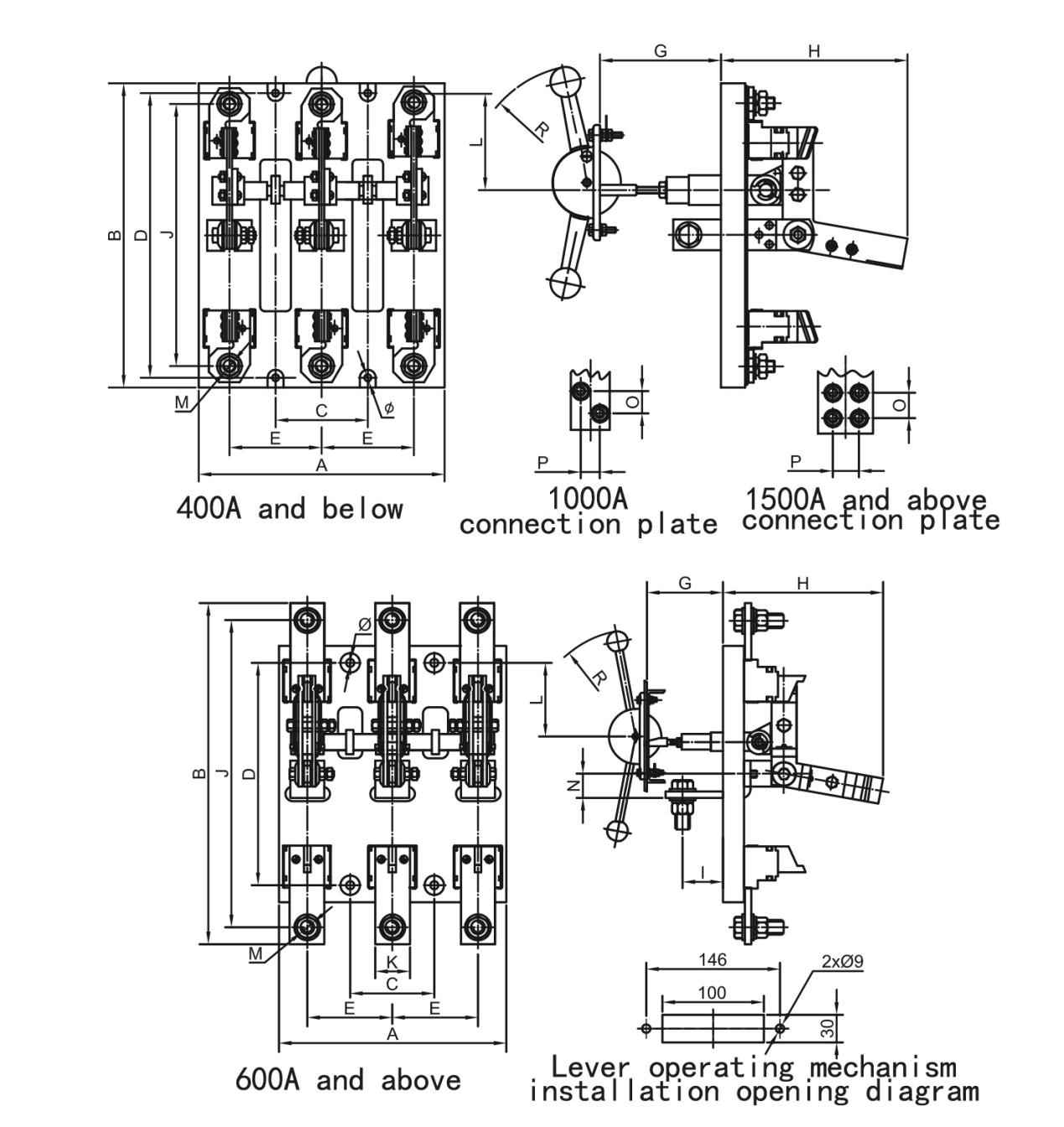

HS11 central handle type panel wiring

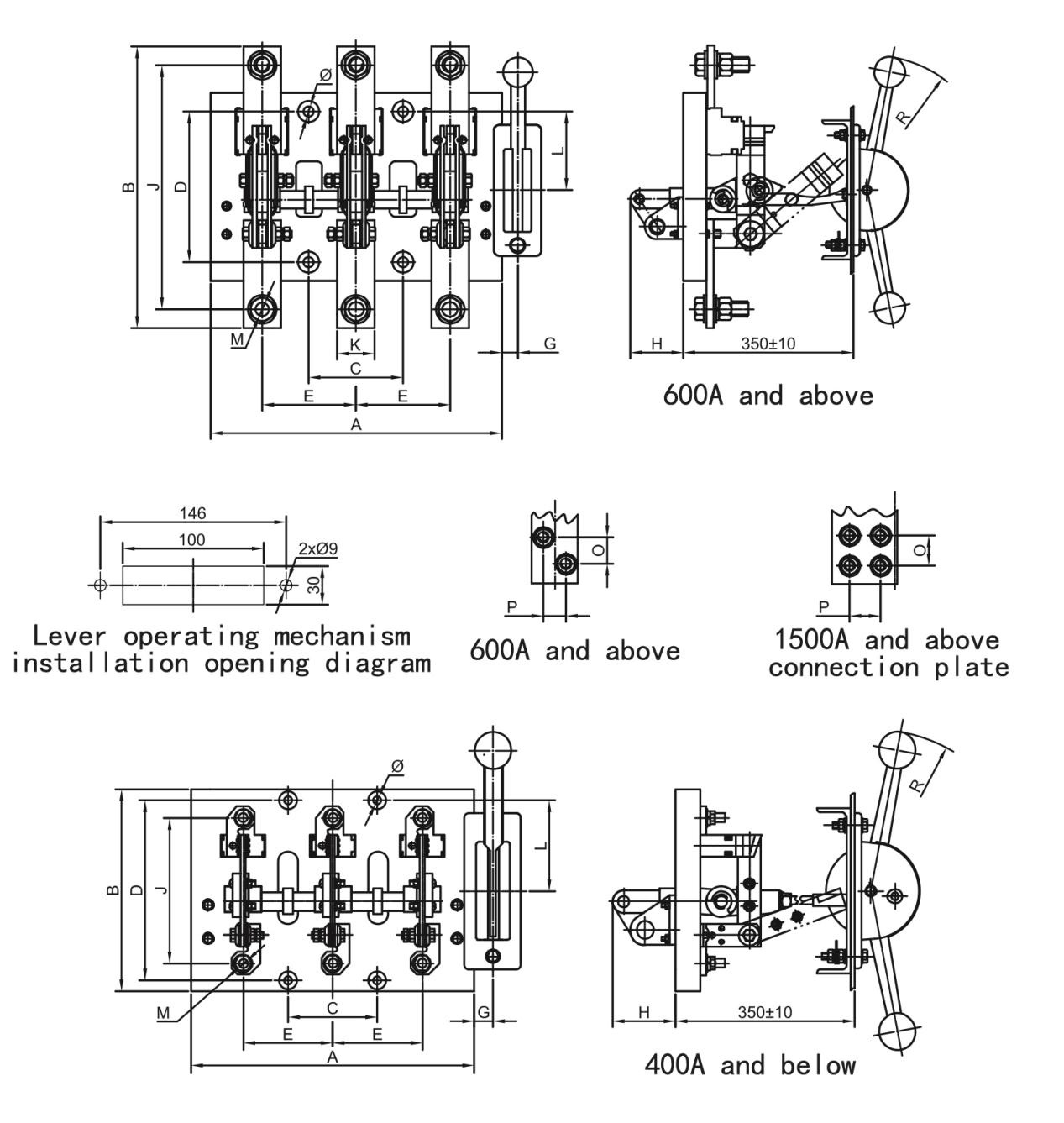

HD12 side front lever operating mechanism

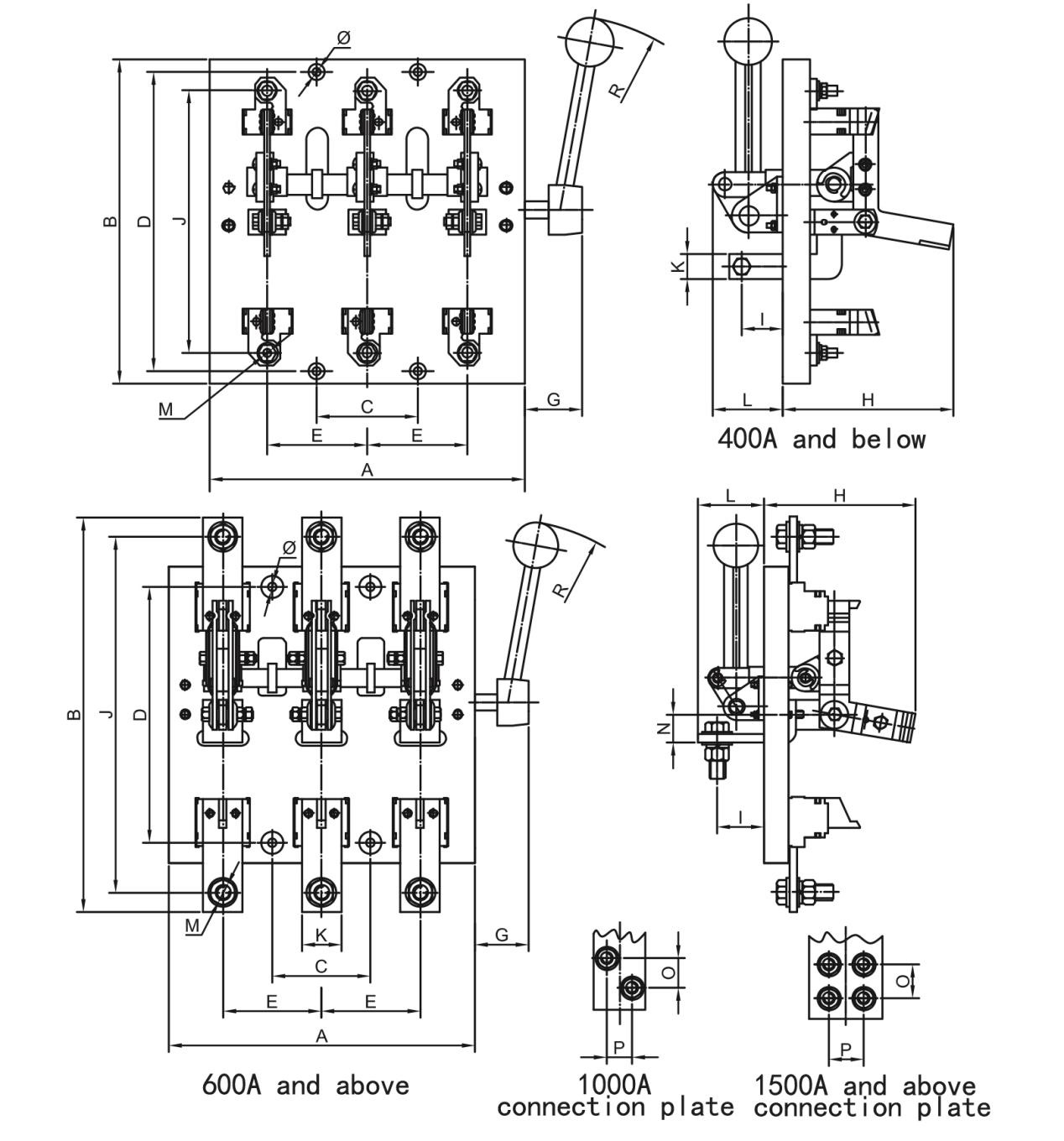

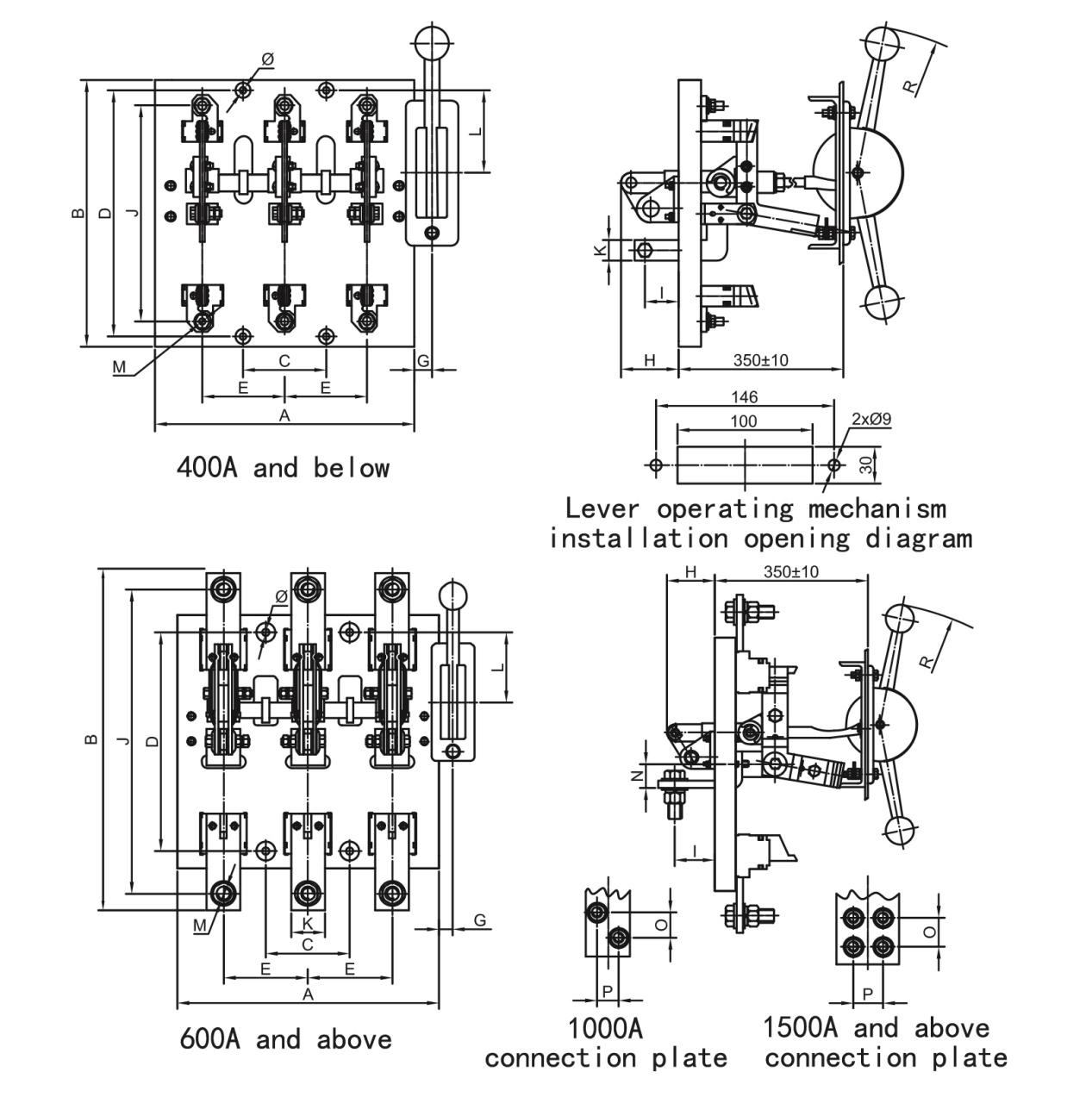

HS12 side front lever operating mechanism

Frequently Asked Questions

What is the main difference between HD and HS series?

The HD series refers to Single Throw Blade Isolators, while the HS series refers to Double Throw Blade Switch Isolators, typically used for power source switching.

What are the available voltage ratings for these isolators?

These switches are designed to operate at voltages of 400V, 690V, and up to 1140V, depending on the specific model requirements.

Are these products certified for international use?

Yes, they comply with the GB/T 14048.3 and IEC 60947-3 standards, and carry the CCC certification.

Can I choose the type of base plate for the switch?

Yes, we offer both Glass plates (B) and Plastic plates (J) to suit different installation environments and insulation needs.

What current specifications are supported by the HD13 series?

The HD13 and HD13BX series support a wide range of current specifications from 63A up to 4000A.

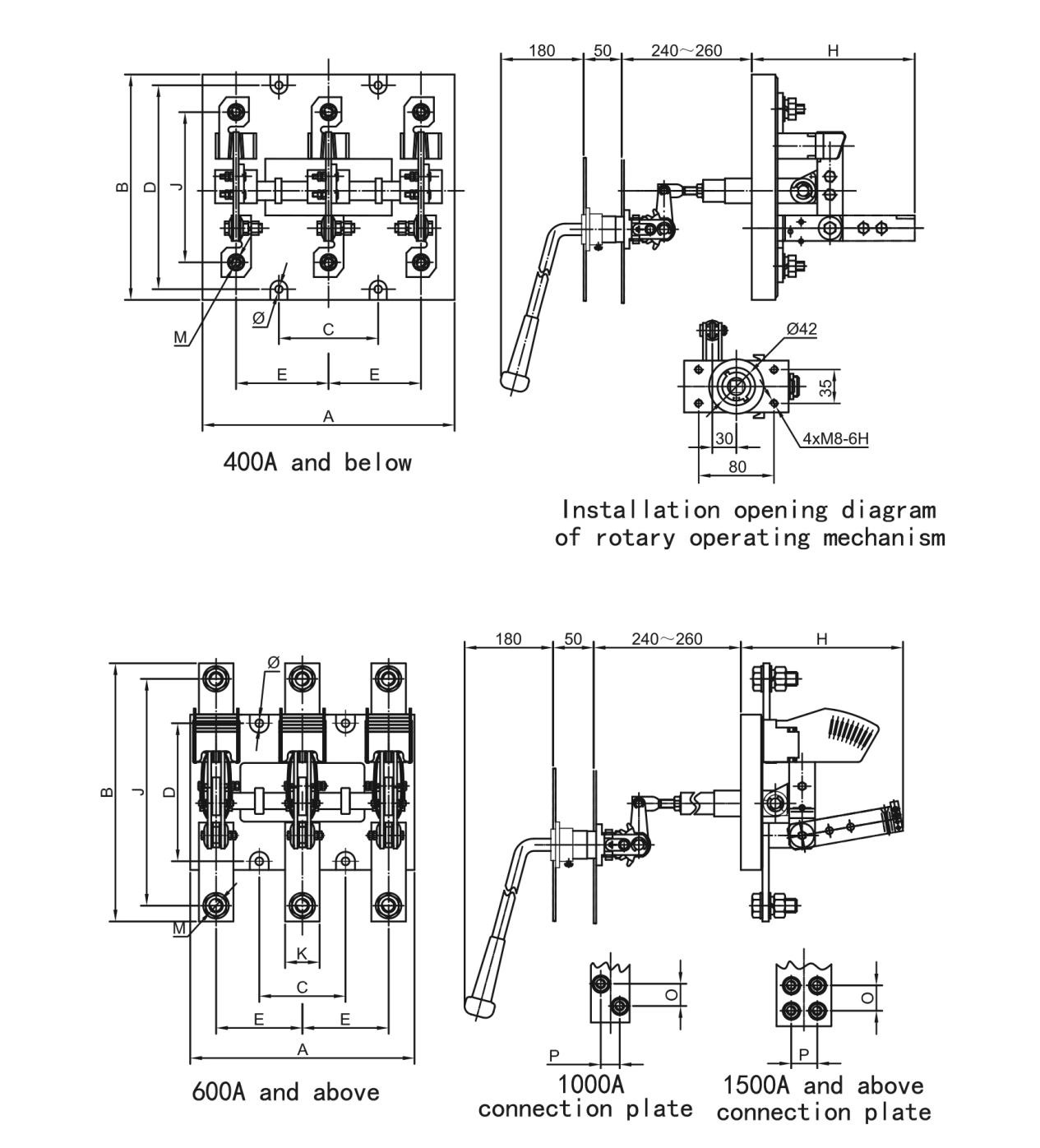

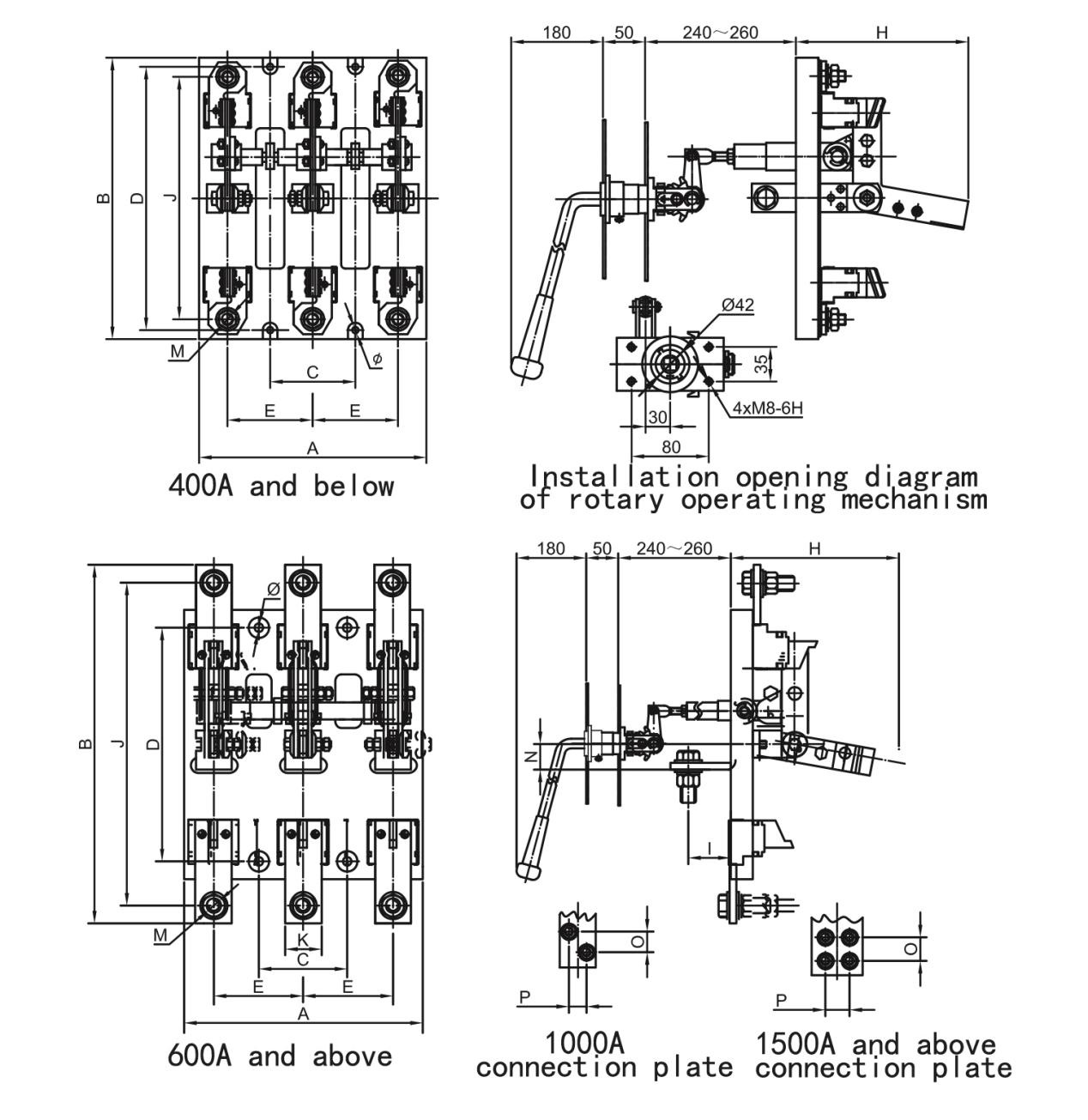

Are there options for rotary operating mechanisms?

Yes, models designated with "BX" feature a rotary operating mechanism, providing an alternative to the standard handle type.
