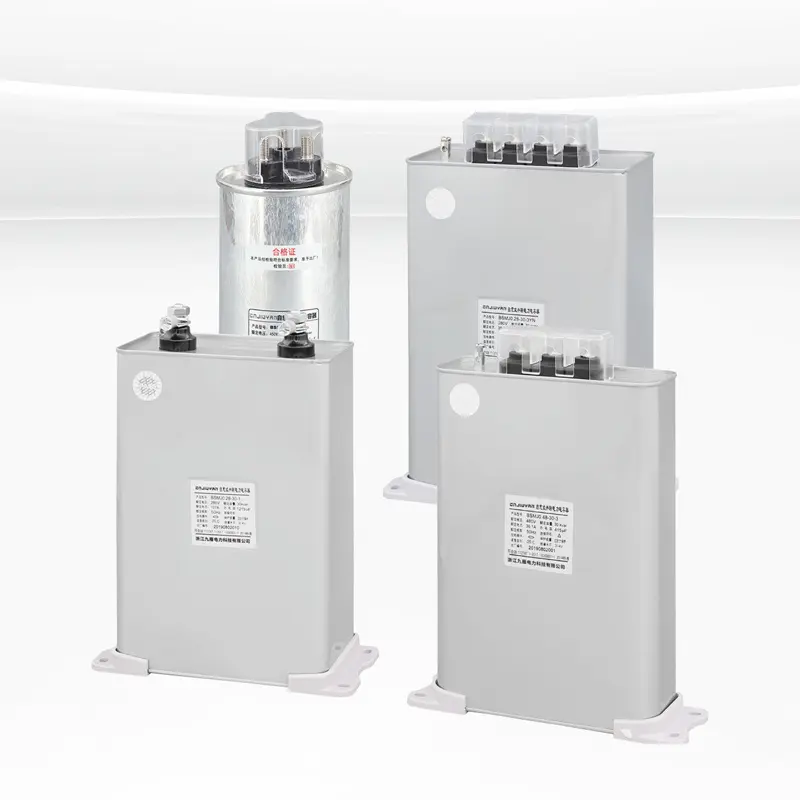

The BSMJ series self-healing low-voltage parallel capacitors are suitable for power frequency AC power systems with a rated voltage of 1000V and below, used to improve power factor and voltage quality.
BSMJ series self-healing low voltage shunt capacitors are designed for industrial frequency AC power systems with rated voltage not exceeding 1000V and are widely used in various power equipment and industrial facilities. The main function of these capacitors is to improve the power factor and voltage quality of the power system, thereby effectively reducing energy consumption and power loss.
By connecting in parallel in the power system, BSMJ series capacitors can compensate for the reactive power caused by inductive loads and improve the overall efficiency of the power system. In addition, these capacitors use self-healing technology, which can automatically repair in the event of a local fault, thereby improving the reliability and service life of the equipment.
In modern power systems, a good power factor not only helps reduce electricity bills, but also reduces pressure on the power grid and improves the operating stability of power equipment. Therefore, the BSMJ series self-healing low-voltage shunt capacitor plays an important role in the optimization and energy saving of power systems, and has become an ideal choice for power engineers and equipment managers.
Compliant with standards: GB/T12747.1-2017; GB/T12747.2-2017; IEC60831-1:2014; EC60831-2:2014.

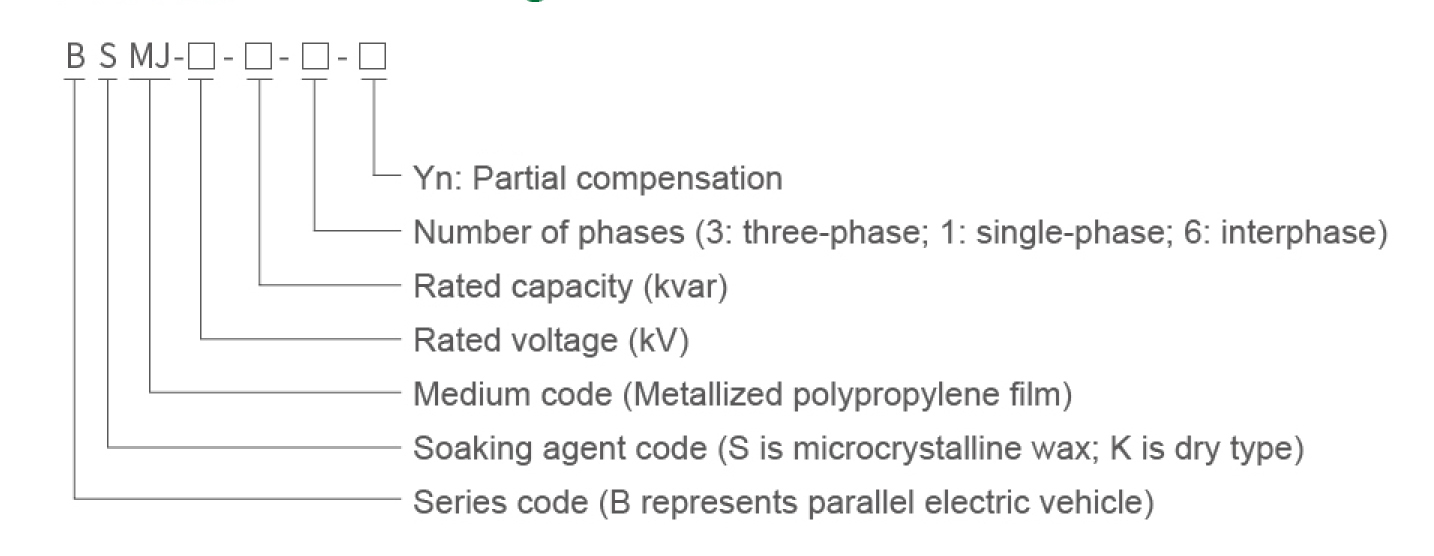

Model meaning
Installation and usage conditions
Environmental air temperature: -25℃ ~ +50℃;
Relative humidity: ≤50% at 40°C; ≤90% at 20°C;
Altitude: up to 2000m;
Environmental conditions: No harmful gases and vapors, no conductive or explosive dust, no severe mechanical vibration. It should be ensured to work under good ventilation conditions, and it is not allowed to work in a closed and non ventilated environment.
Technical parameters
Rated voltage: (0.23~1.2)kV, AC
Rated frequency: 50Hz or 60Hz;
Rated capacity: (1~100)kvar;
Capacitance deviation: -5% ~ +10%;
Loss tangent value: Tan δ ≤ 0.0012 for 30kvar products at 20℃, > 0.0015 for 30kvar products at power frequency rated voltage;
Maximum allowable overvoltage: 1.1UN: no more than 8h in every 24h;
Maximum allowable overcurrent: 1.3IN;
Self-discharge characteristic: the capacitor is applied with a voltage of 2UN DC, and the residual voltage drops to 50V or below after disconnecting the power supply for 3 minutes.
Frequently Asked Questions
What is the primary function of the BSMJ series shunt capacitors?
The primary function of BSMJ series self-healing low voltage shunt capacitors is to improve the power factor and voltage quality of AC power systems, effectively lowering energy consumption and reducing power loss.
How does self-healing technology benefit the operation?
Self-healing technology allows the capacitor to automatically repair itself in the event of a local dielectric breakdown or fault. This continuous operation capability improves the overall reliability and service life of the equipment.
What are the ambient temperature requirements for installation?
The capacitor is designed to operate safely within an environmental air temperature range of -25°C to +50°C, under well-ventilated conditions.
What standards do these capacitors comply with?
They are fully compliant with standard regulations including GB/T12747.1-2017, GB/T12747.2-2017, IEC60831-1:2014, and EC60831-2:2014.
What is the self-discharge performance of this capacitor?
When disconnected from power, the capacitor's residual voltage drops from 2UN DC to 50V or below within 3 minutes to ensure user safety and ease of maintenance.
