China HGLR Disconnector Fuse Group Suppliers, Factory

HGLR series isolation switch fuse group Used in circuits with AC frequency of 50Hz, rated working voltage of 660V and below, and rated current up to 1250A, for infrequent connection and disconnection circuits, overcurrent or short-circuit protection, and isolation in power distribution systems.

Send Inquiry

Product Description

Selection Guide

Product Name	Conventional heating current	Number of poles	Operation form	Auxiliary contacts	Wiring method
HGLR
	↓	↓	↓	↓	↓
	63:63A ... 1250:1250A	3:3 pole 4:4 pole	Default: In-cabinet operation J:Outside cabinet operation	Default: No auxiliary contact 1: A set of auxiliary contacts 2: 2 sets of auxiliary contacts	Default: Front panel wiring B: Wiring behind the board

Note: The sales price does not include fuses, which need to be provided by the user

Product Features

Adopting thermosetting plastic fully enclosed structure, it has high dielectric properties, protection ability and reliable operation safety.
The use of spring energy storage, instantaneous release of the accelerated closing mechanism and multi-breakpoint parallel contact structure greatly improves the electrical and mechanical properties of the product.
160A, 250A, 400A adopt modular design, 630A adopts integrated structure to ensure load operation and reliable short-circuit protection function.
Available in 3-pole and 4-pole (3-pole + switchable neutral pole).
The handle can be directly mounted on the switch for operation (referred to as in-cabinet operation), or it can be operated outside the distribution cabinet door through an extended shaft (referred to as out-cabinet operation).
Normally open and normally closed auxiliary contacts and rear panel wiring methods can be provided as required.

Technical Parameters

Model	63, 100	160	250	400	630	800, 1000, 1250
Rated operating current (A)	2,4,6,8,10,12,16,20,25,32,40,50,63,80,100	2,4,6,8,10,12,16,20,25,32,40,50,63,80,100,125,160	80,100,125,160,200,224,250	125,160,200,224,250,315,355,400	315,355,400,500,630	800, 1000, 1250
Fuse link size	RT16-000(NT100C)	RT16-00(NT100)	RT16-1(NT1)	RT16-2(NT2)	RT16-3(NT3)	RT16-4(NT4V) RT17(NT4)
Rated insulation voltage(V)	800

Appearance and installation dimensions (mm)

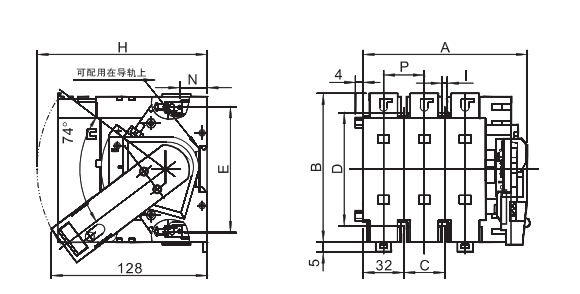

Switch group 63-100A side operation appearance and installation dimensions

Specification	Overall dimensions and installation dimensions
Specification	A	B	C	D	E	H	I	N	P
HGLR-63A/3	130	120	32	92	96	140	5	22.5	32
HGLR-63A/4	168	120	328	92	96	140	5	22.5	32

Appearance and installation dimensions (mm)

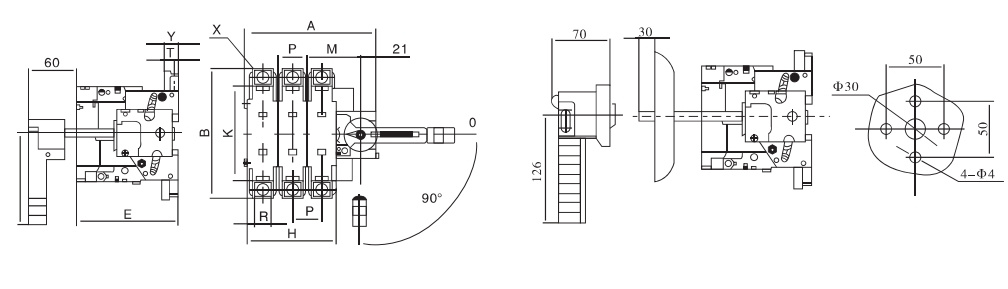

Switch group 160-400A front operation appearance and installation dimensions

Specification	Overall dimensions and installation dimensions
Specification	A	B	E	H	M	K	P	R	T	X	Y	U
HGLR-160A/3	164	162	126	108	67.5	127	36	20	2.5	M8	19	115
HGLR-160A/4	200	162	126	144	67.5	127	36	20	2.5	M8	19	115
HGLR-250A/3	236	195	146	180	91.5	162	60	32	2.5	M10	19	115
HGLR-250A/4	296	195	146	240	91.5	162	60	32	2.5	M10	19	115
HGLR-400A/3	278	205	149	198	122	172	66	50	3	M10	25	145
HGLR-400A/4	344	205	149	264	122	172	66	50	3	M10	25	145

Appearance and installation dimensions (mm)

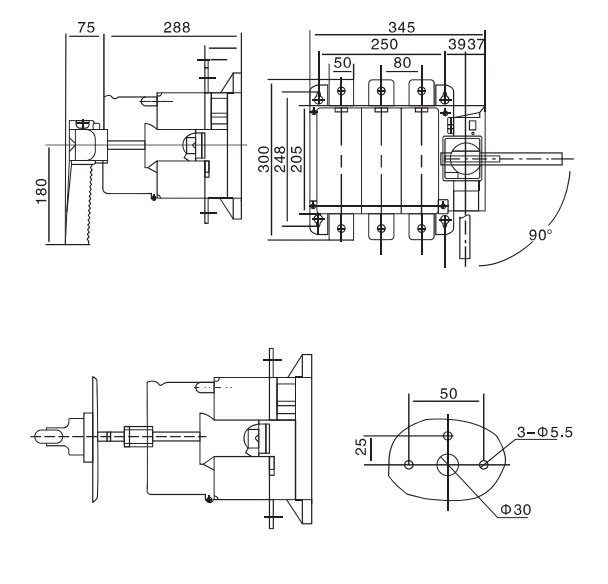

Switch group 630A front operation appearance and installation dimensions

Appearance and installation dimensions (mm)

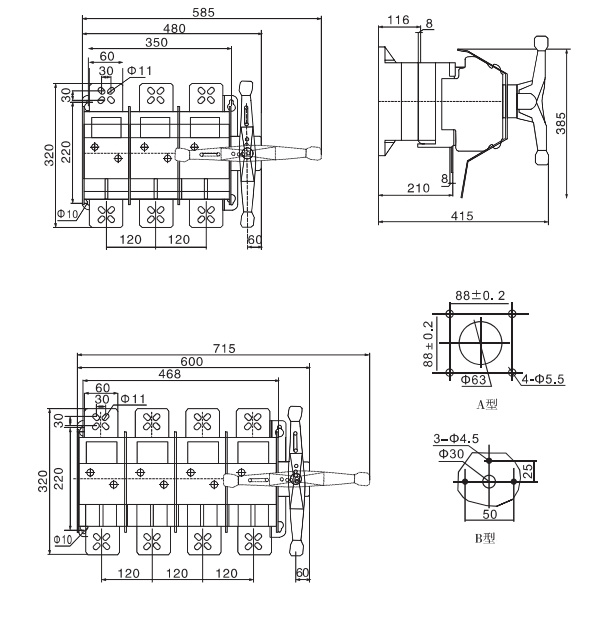

Switch group 800-1250A front operation appearance and installation dimensions

Note: 1. The total length of A-type handle is 405, and the total length of B-type handle is 330. 2. The A-type handle is common, and the B-type handle can be customized separately.

Frequently Asked Questions

What pole configurations are available for the HGLR series?

The HGLR switches are available in both 3-pole and 4-pole configurations (3-pole + switchable neutral pole) to suit different wiring and electrical layout demands.

Are fuses included in the standard sales price of the HGLR switch?

No, the sales price does not include fuses. Fuses need to be provided by the user separately depending on their system requirements.

Can the switch handle be operated from outside the distribution cabinet?

Yes. While the standard handle can be mounted directly on the switch for in-cabinet operation, you can also operate it outside the cabinet door using an extended shaft (out-cabinet operation).

What is the rated insulation voltage (Ui) for this range of switches?

The rated insulation voltage for the HGLR series switch is 800V across all model specifications.

How does the modular design benefit installation?

Models rated 160A, 250A, and 400A feature a modular design, while the 630A model employs an integrated structure. This ensures highly reliable load operation and optimal short-circuit protection.

What options exist for wiring and auxiliary contacts?

HGLR switches support both front panel wiring and wiring behind the board. Additionally, normally open and normally closed auxiliary contacts can be customized and provided based on your exact requirements.
