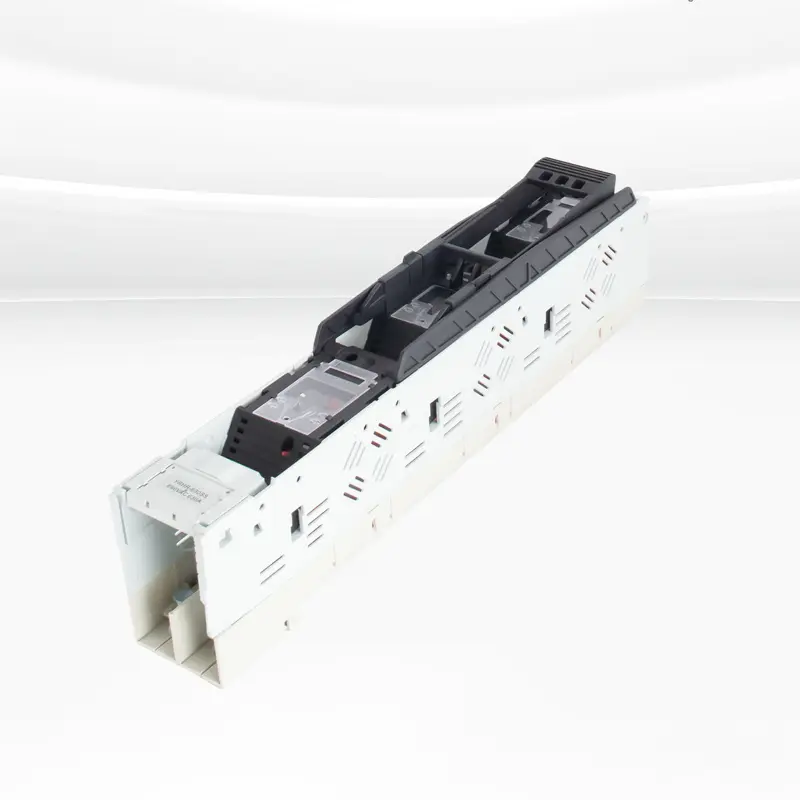

ODM HG2B Series Bar Fuse Type Isolation Switch Manufacturers, Factories

HG2B series strip fuse disconnector is suitable for AC 50Hz, rated voltage to 660V. agreed heating current to 630A in the industrial and enterprise power distribution system, can be operated with load, the first current transformer and bar switch integration, with the advantages of convenient adjustment of upper and lower inlet and outlet lines, single-phase independent breaking, and three-phase simultaneous breaking, etc., are widely used in complete sets of products and imported box- type substations.

Send Inquiry

Product Description

Scope of application

HG2B series strip fuse disconnector (hereinafter referred to as switch) is a high-performance electrical equipment, specially designed for industrial power distribution systems with AC 50Hz, rated voltage up to 660V, and agreed thermal current up to 630A. The switch can not only operate safely under load, but also has many innovative technologies, and pioneered the perfect integration design of current transformer and strip switch. This design makes the equipment more efficient and convenient during use.

The structural design of the HG2B series switch takes into account the actual needs of users. It has the convenience of swapping the upper and lower incoming and outgoing lines. Users can flexibly adjust the wiring method according to the actual installation environment. The switch also supports the single-phase independent disconnection function, which can safely cut off the single-phase circuit when necessary to ensure the safe operation of the equipment. At the same time, it can also achieve three-phase simultaneous disconnection, which is suitable for a variety of complex power system requirements.

Due to its superior performance and flexible application characteristics, HG2B series strip fuse disconnectors are widely used in complete sets of products and imported box-type substations, and have become an indispensable and important part of modern power distribution systems. Whether in industrial production, commercial buildings or other places with high power demand, HG2B series switches can provide reliable power protection to ensure the safe and stable operation of equipment.

The switch is novel and beautiful, and meets the standards of IEC60947-3 and GB14048.3.

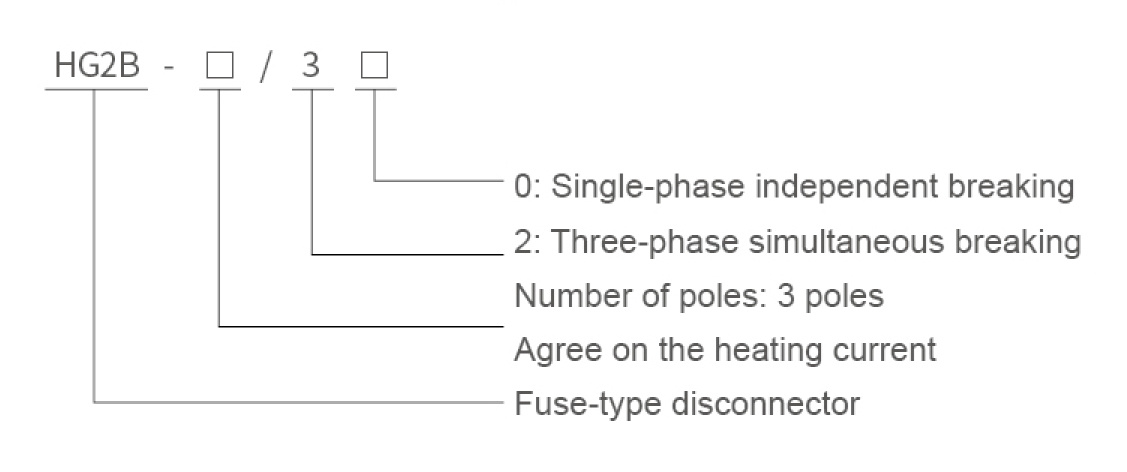

Model meaning

Structural features

The switch is mainly composed of the base, the handle, the arc extinguishing cover and other parts. The three groups of static contacts are directly installed on the base. The fuse is installed in the handle and is directly used as the moving contact blade. The handle can be opened along the fulcrum on the base in a fan-shaped rotation, so that the fuse is completely pulled out from the static contact, and the handle and the base can also be easily withdrawn from the base, which is convenient for the installation of the switch and the safe dismantling of the fuse.

The structure of the switch is simple, easy to disassemble and assemble. Its base is made of glass fiber reinforced unsaturated polyester molding compound. Its base, handle, arc extinguishing cover, etc. are all pressed by arc-resistant plastic, which has good mechanical strength, flame retardant performance and dielectric properties. The arc extinguishing cover is equipped with multiple metal arc extinguishing grids, which strengthens the arc extinguishing ability of the switch, eliminates the harm of arcing, and improves the service life of the contact.

The switch can be operated with load. The first current transformer and bar switch are integrated, with the upper and lower inlet and outlet lines convenient for adjustment. It can be single-phase independent breaking, and can also be three-phase simultaneous breaking. It can be inserted into the fuse for the contact force, or can be directly used with the blade as the isolation switch.

Technical Parameter

1. The main technical parameters of the switch

Agree on the heating current lth		160A	250A	400A	630A
Rated insulation voltage Ui		690V
Rated frequency		50Hz
Rated operating voltage Ue		AC 400 / 660V
Rated working current le	400V/AC-23B	160A	250A	400A	630A
	660V/AC-22B	100A	200A	315A	425A
Rated Switching Capacity(Ar.m.s)		10le
Rated breaking capacity (Ar.m.s)		8le
Rated Limit Short-Circuit Current(r.m.s)		50kA
Mechanical life (times)		3000	2000	1000	1000
Electrical life (times)		600	400	200	200
The fuse loses power P		12W	24W	34W	48W
Weight (three times) kG		1.66	8.64	8.64	9.42

2. The matching relationship between the switch and the fuse

Agree on the heating current Ith	Fuse size is available	Fuse body rated current (A)
160A	NT00	10, 16, 25, 32, 40, 50, 63, 80, 100, 125, 160
250A	NT3	200, 250
400A	NT3	315, 355, 400
630A	NT3	425, 500, 630

Frequently Asked Questions (FAQ)

Q: What is the main application of the HG2B series strip fuse disconnector?

A: The HG2B series switch is high-performance electrical equipment designed for industrial power distribution systems with AC 50Hz, rated voltage up to 660V, and agreed thermal current up to 630A. It is widely used in complete sets of products and imported box-type substations.

Q: Can the HG2B series switch be operated under load safely?

A: Yes, the switch can be operated safely under load. It also features a pioneering integrated design of current transformer and strip switch to ensure efficiency.

Q: Does the HG2B switch support single-phase and three-phase disconnection?

A: Yes, it supports the single-phase independent disconnection function to safely cut off a single-phase circuit, and it can also achieve three-phase simultaneous disconnection based on power system requirements.

Q: What materials are used to construct the switch components?

A: The base is made of glass fiber reinforced unsaturated polyester molding compound. The base, handle, and arc extinguishing cover are pressed by arc-resistant plastic, offering high mechanical strength, flame retardancy, and dielectric properties.

Q: What standards does the HG2B series strip fuse disconnector comply with?

A: The HG2B series switch fully complies with the standards of IEC60947-3 and GB14048.3.
