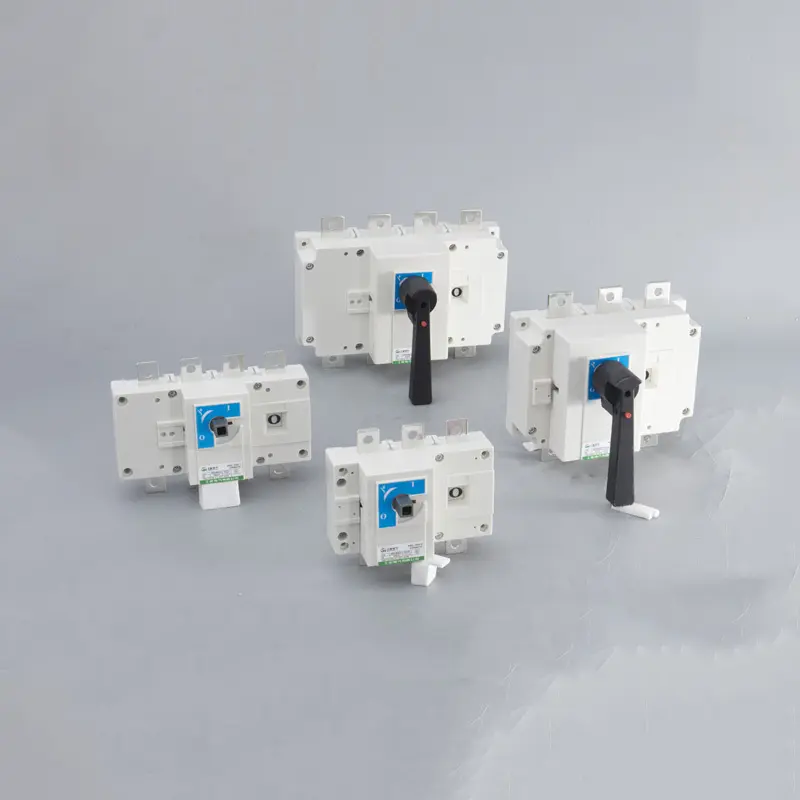

ODM HGL Series Disconnector Suppliers, Factories

HGL series isolation switch, suitable for AC 50Hz, AC rated voltage 690V and below, DC rated voltage 440V and below, rated current up to 3150A. In industrial distribution equipment, it can be used for infrequent manual connection and disconnection of circuits and isolation of power sources, among which 125A~630A can be used for frequent connection and disconnection.

Send Inquiry

Product Description

Product Selection

Product Name	Derivative Model	Current Specifications	Number of poles	Derived code	How to operate	Auxiliary contacts	Observation window	Double throw switch structure type
HGL	Z	16	3	T	J	11	K	C
	↓	↓	↓	↓	↓	↓	↓	↓
	Default: Single throw switch Z: Double throw switch i: K Series	16: 16A 3150: 3150A	3: 3P 4: 4P	Default: Normal T: Improved (only for 800A)	Default: In-cabinet operation J: Operation outside the cabinet	Default: No auxiliary 11: Bring a pair of assistants 22: Bring two pairs of supports	Default: No viewing window K: With observation window T: Transparent	Default: Up and down C: Left and right type

Technical Parameters

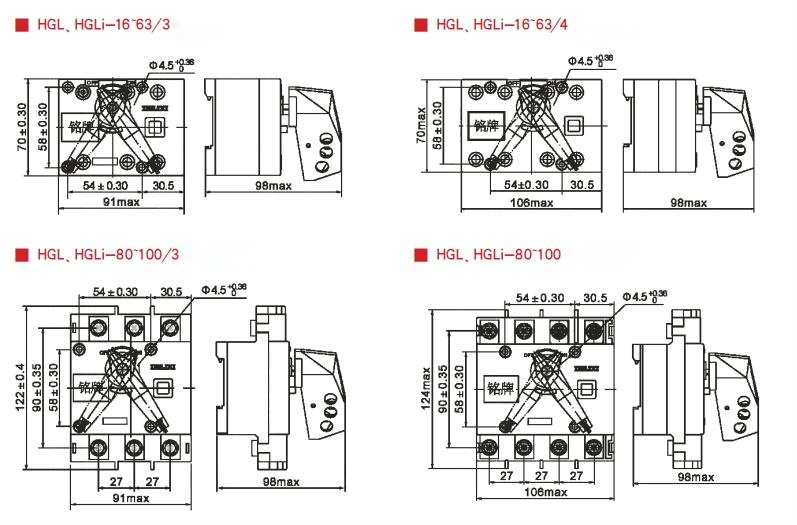

Current specification A	63 (16, 25, 32, 40), 100 (80), 160 (125), 250 (200), 630 (315, 400, 500), 1600 (800, 1000, 1250), 3150 (2000, 2500)
Voltage V	400, 690
Certification Standards	GB/T 14048.3, IEC 60947-3
Certification Standards	CCC

Appearance and installation dimensions

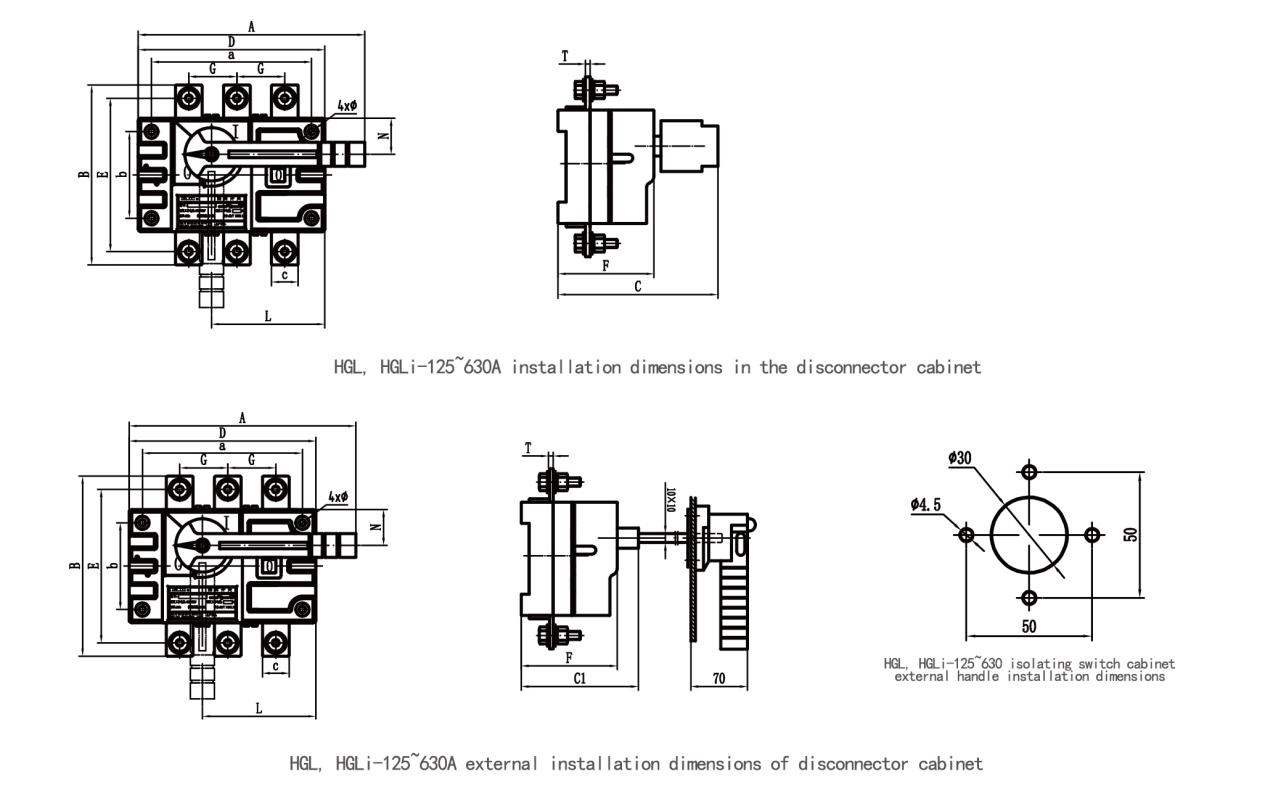

HGL, HGLi-125~630A Isolating switch

Specifications: HGL, HGLi - 125A ~ 630A	Overall dimensions and installation dimensions
Specifications: HGL, HGLi - 125A ~ 630A	A	B	C	C1	D	E	F	G	L	N	a	b	c	T	Φ
125A/3	170	135	120	92	140	115	72	36	85	27	120	65	20	3.5	5
125A/4	200	135	120	92	170	115	72	36	85	27	150	65	20	3.5	5
160A/3	170	135	120	92	140	115	72	36	85	27	120	65	20	3.5	5
160A/4	200	135	120	92	170	115	72	36	85	27	150	65	20	3.5	5
250A/3	180	170	136	98	180	140	85	50	115	35	160	90	25	3.5	6.2
250A/4	230	170	136	98	230	140	85	50	115	35	210	90	25	3.5	6.2
400A/3	230	240	175	135	230	206	116	65	145	50	210	140	32(400)	5(400)	7
630A/3	230	260	175	135	230	220	116	65	145	50	210	140	32(400)	5(400)	7
400A/4	290	240	175	135	290	206	116	65	145	50	270	140	40(630)	6(630)	7
630A/4	290	260	175	135	290	220	116	65	145	50	270	140	40(630)	6(630)	7

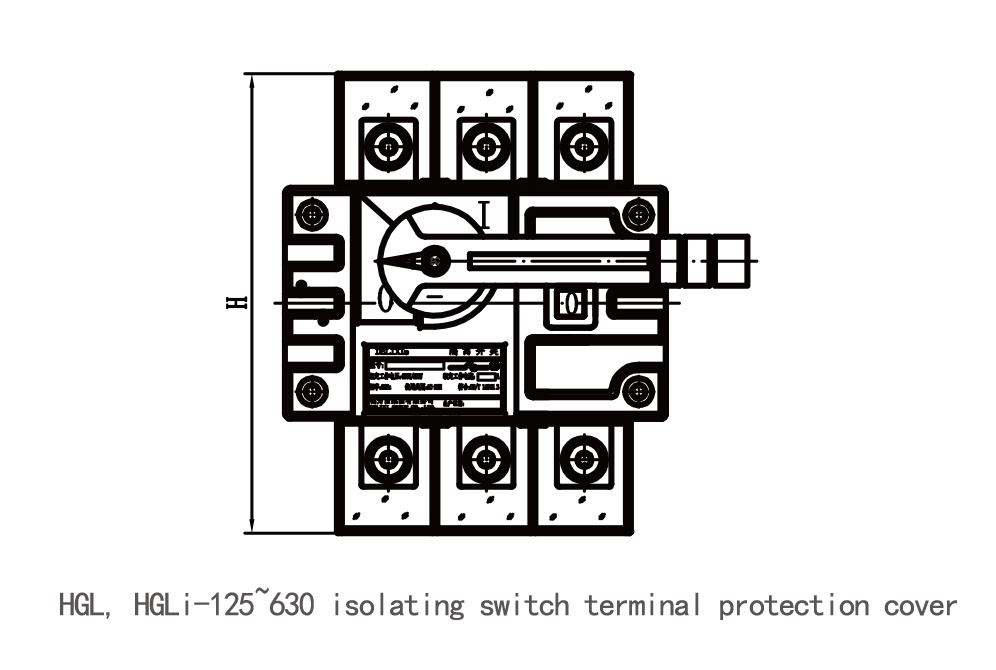

Specification	H
HGL, HGLi-160/3	169
HGL, HGLi-160/4	169
HGL, HGLi-250/3	200
HGL, HGLi-250/4	200
HGL, HGLi-400, 630/3	270
HGL, HGLi-400, 630/4	270

Note: The remaining dimensions are consistent with HGL, HGLi-125~630 isolating switches.

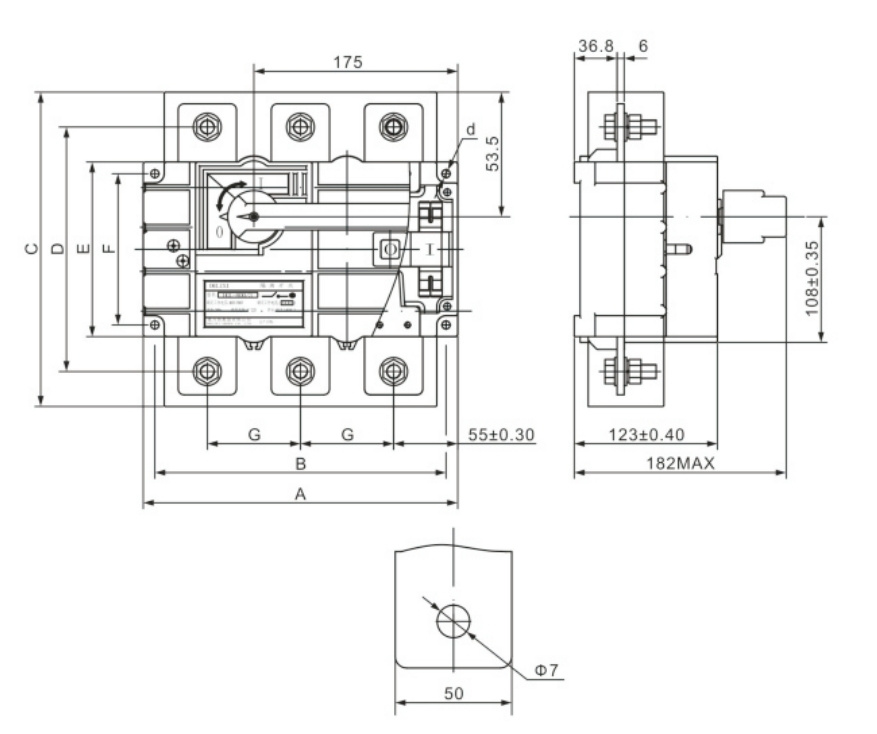

HGL-800T Isolating Switch

Product Model	A	B	C	D	E	F	F	G	d
HGL-800T/3	270	250	270	210	150	150	130	80	7
HGL-800T/4	350	330	270	210	150	150	130	80	7

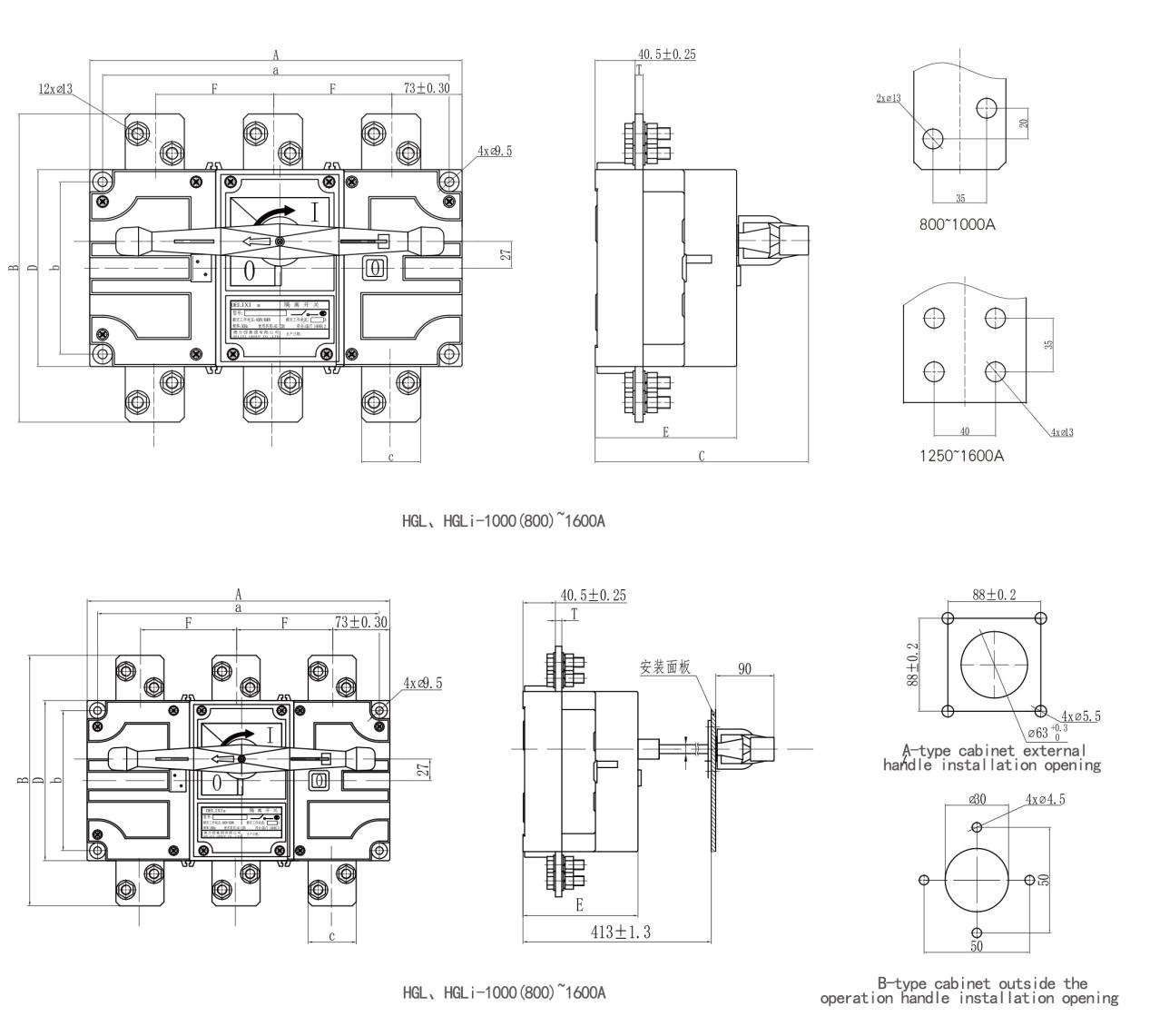

HGL, HGLi-1000(800)~1600A Isolating switch

Note: Standard connecting rod length is 300mm.

Model Specifications	A	B	C	D	E	F	a	b	c	T
HGL, HGLi-1000(800)/3	378	313	222	200	143	120	352	175	60	8
HGL, HGLi-1000(800)/4	490	313	222	200	143	120	465	175	60	8
HGL, HGLi-1250/3	378	356	222	200	143	120	352	175	80	8
HGL, HGLi-1250/4	490	356	222	200	143	120	465	175	80	8
HGL, HGLi-1600/3	378	356	222	200	143	120	352	175	80	10
HGL, HGLi-1600/4	490	356	222	200	143	120	465	175	80	10

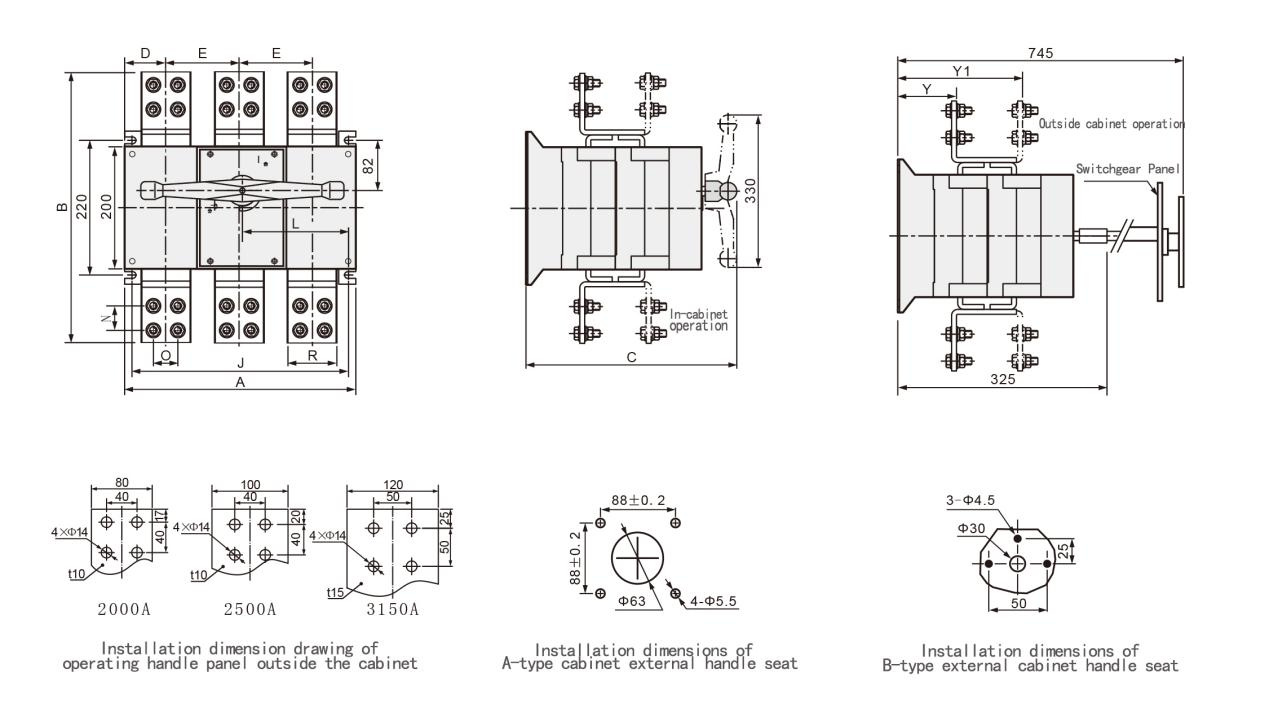

HGL-2000~3150A Isolating switch

Note: 1. The total length of the A-type handle is 405, and the total length of the B-type handle is 330. 2. The A-type handle is common, and the B-type handle can be customized separately.

Specification current	HGL-2000, 2500/3150 cabinet and cabinet isolation installation dimensions (mm)
Specification current	A	B	C	D	E	L	J	N	O	R	Y	Y1
2000A/3	378	440	365	65	120	173.5	352	40	40	80	100.4	200.5
2500A/3	378	470	365	65	120	173.5	352	40	40	100	100.5	200.5
3150A/3	383	534	365	56	130	173.5	352	50	50	120	94.5	211.5
2000A/4	493	440	365	60	120	235	467	40	40	80	100.5	200.5
2500A/4	493	470	365	60	120	235	467	40	40	100	100.5	200.5
3150A/4	503	534	365	50	130	235	467	50	50	120	94.5	211.5

Frequently Asked Questions

What is the primary function of the HGL isolating switch?

The HGL isolating switch is mainly used for power distribution circuits and motor circuits where frequent connection and disconnection is not required, serving as a reliable electrical isolation point during maintenance or circuit inspections.

What current ratings are covered in the HGL series?

The series offers a wide operational current range from 16A up to 3150A, designed to support both low-current and heavy industrial high-power electrical applications.

Does this isolating switch support operation outside the cabinet?

Yes, with the optional "J" derivative code design, the isolating switch is equipped for operation outside of the electrical cabinet. Standard designs operate from within the cabinet.

What certifications and safety standards do HGL switches comply with?

HGL isolating switches comply with standard international electrical specification IEC 60947-3, Chinese national standard GB/T 14048.3, and are CCC certified.

Can auxiliary contacts be configured with the switch?

Yes, they support configuration options for auxiliary contacts. You can select either a single pair of assistants (code 11) or two pairs of supports (code 22) based on control system integration needs.

Is the handle customizable for higher current models like HGL-2000~3150A?

Yes. While the A-type handle is standard with a total length of 405mm, the shorter B-type handle (330mm length) can be customized separately according to physical spatial constraints of your distribution boards.
