ODM Fuse Cutout Supplier, Manufacturer

NT00-M, NT1-M, NT3-M AC800V Fuses Link
Voltageï¼š500VAC/690VAC/250VDC

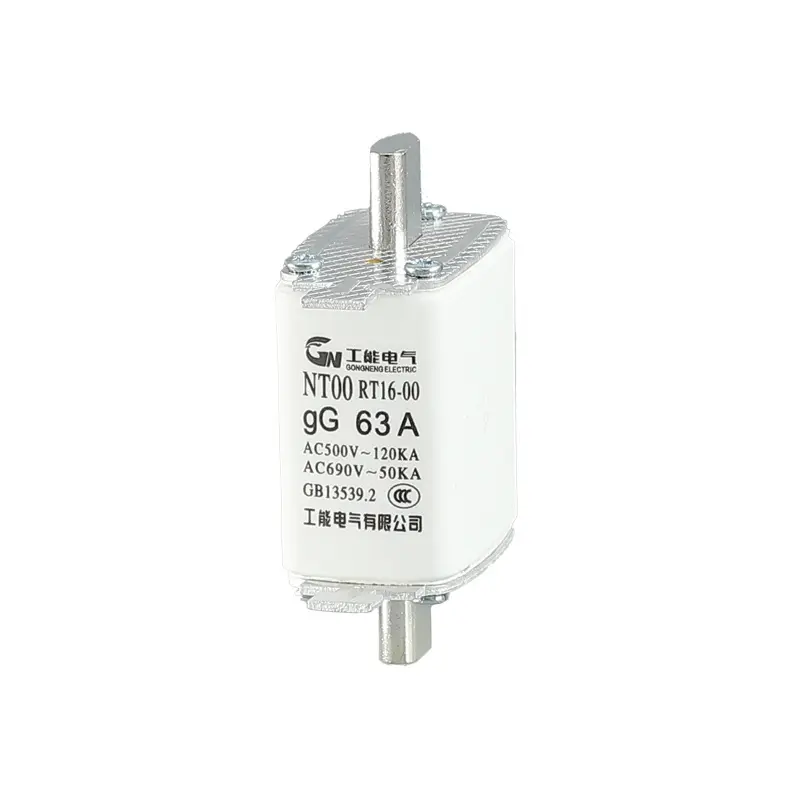

Fuse linking RT16-00 with double indicator Hrc Ceramic Knife Blade
Materialï¼šSilica sandsï¼ŒCopperï¼Œhigh frequency porcelainï¼Œhigh strength aluminum alloy
Key words:fuse linking

Send Inquiry

Product Description

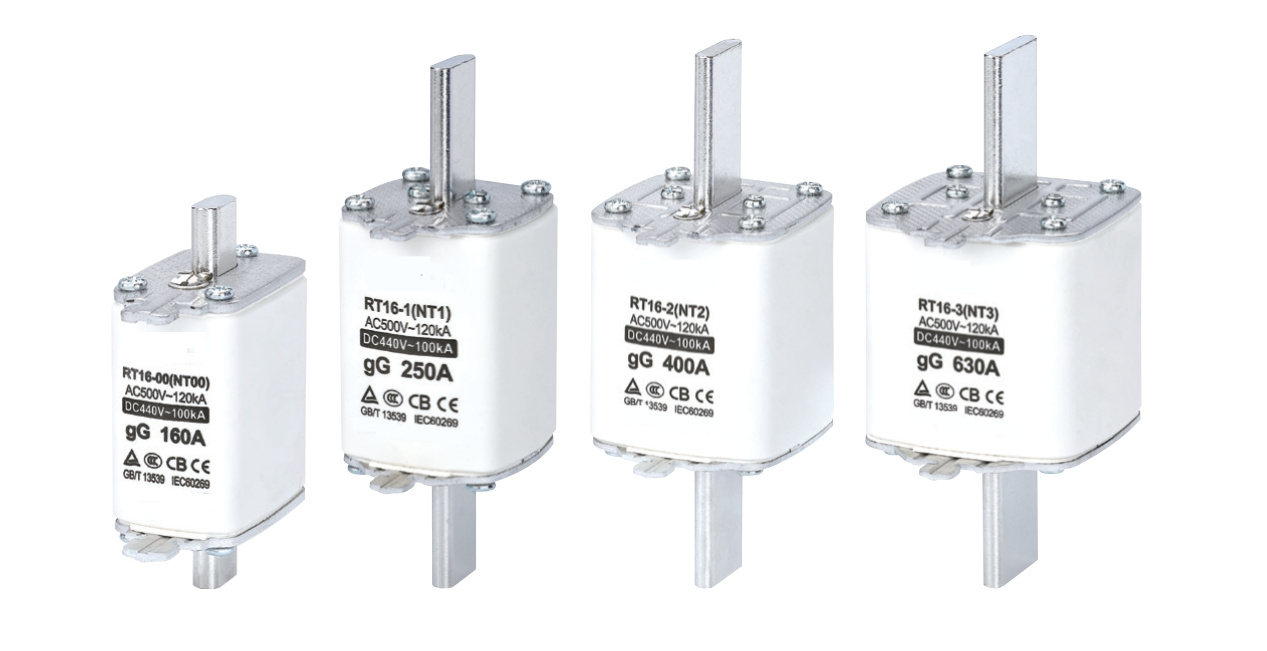

Knife Shaped Contact Fuse (Single Indication)

Product model	Size	Rated voltage (V)	Rated current (A)	Rated breaking capacity (kA)	Breaking range and usage category	Rated dissipation power (W)	Single gross weight (kg)	Pieces/box
NT000	0	AC 690 / AC 500	2 - 160	50kA(AC 690V) 120kA(AC 500V)	gG	1.5 - 10	0.13	135/45
RT16-00 (NT00)	00	AC 690 / AC 500 / DC 440	2 - 160	120kA(AC 500V) 100kA(DC 440V)	gG	1.5 - 11	0.18	108/36
RT16-1 (NT1)	1	AC 690 / AC 500 / DC 440	40 - 250	120kA(AC 500V)	gG	5.5 - 20	0.4	54/18

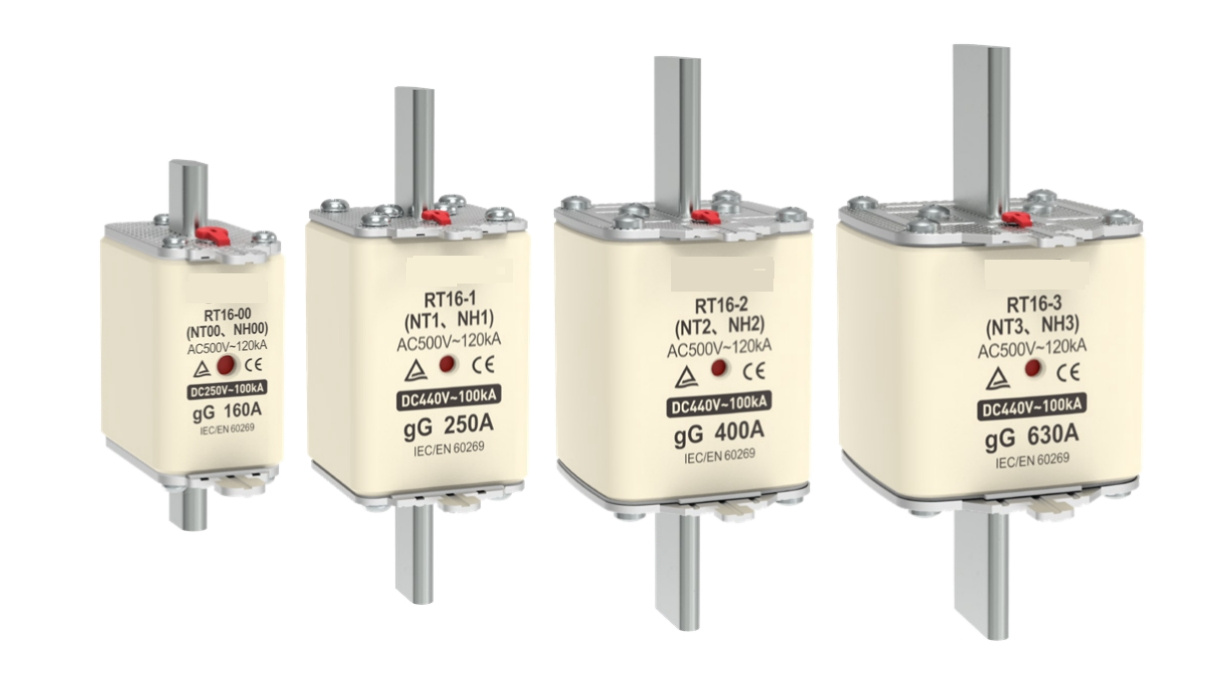

Knife Shaped Contact Fuse (Double Indication)

Product model	Size	Rated voltage (V)	Rated current (A)	Breaking Capacity	Category	Weight (kg)
NH000	000	AC 690 / AC 500	2 - 160	120kA(AC 500V)	gG	0.18
NH1 / NH2 / NH3	1, 2, 3	AC 690 / AC 500 / DC 440	40 - 630	120kA(AC 500V)	gG	0.4 - 0.8

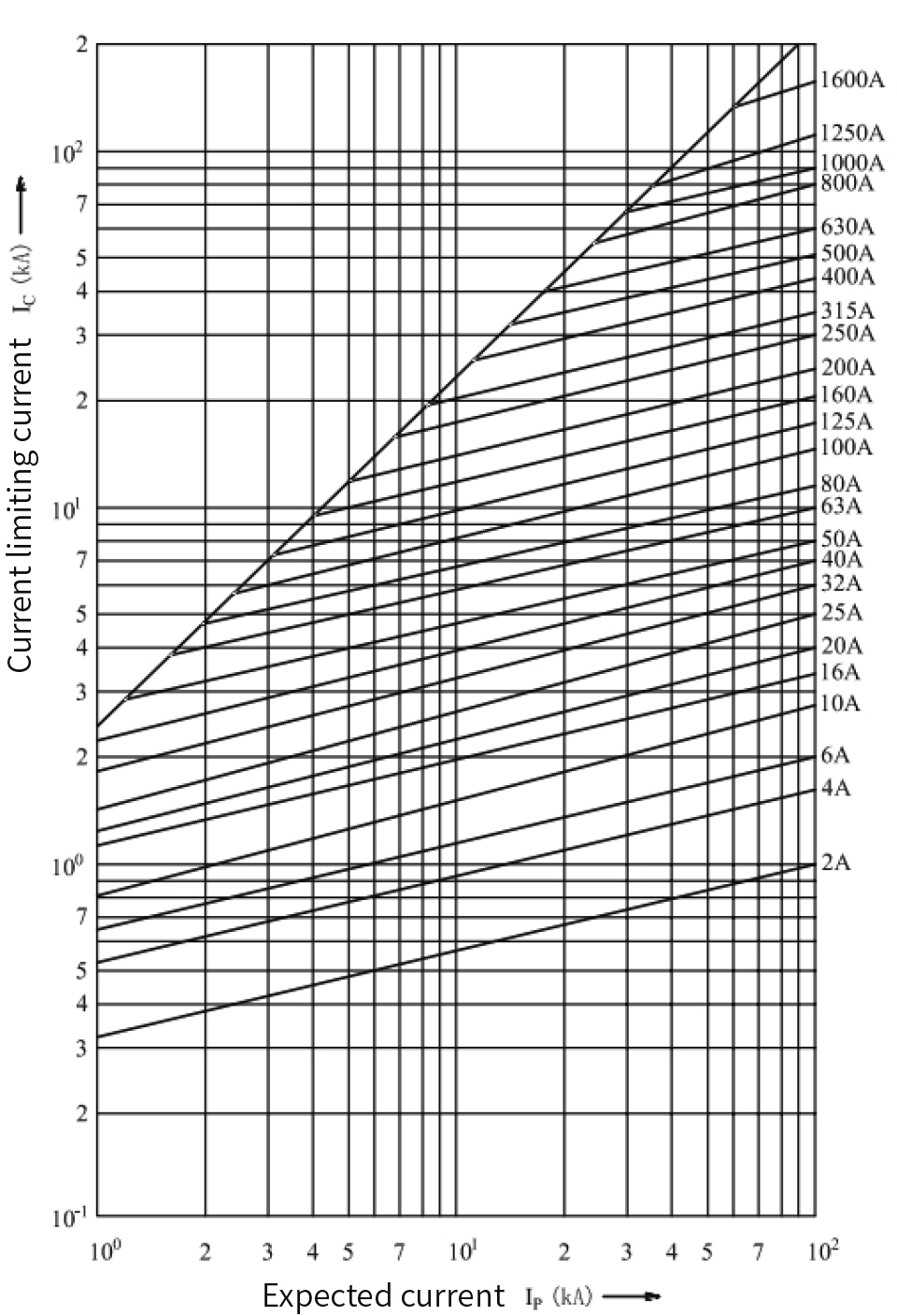

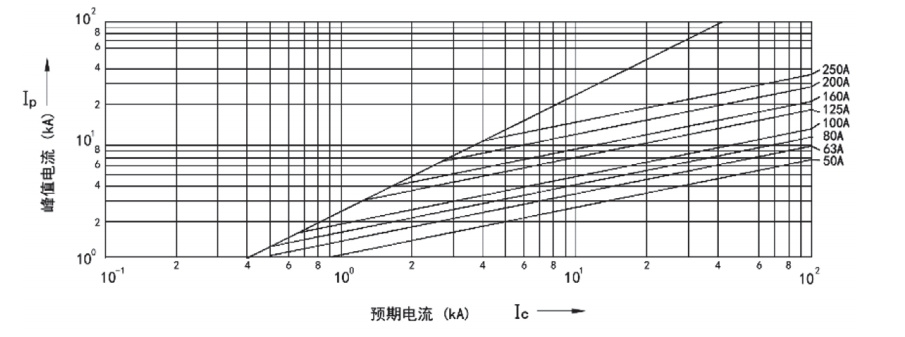

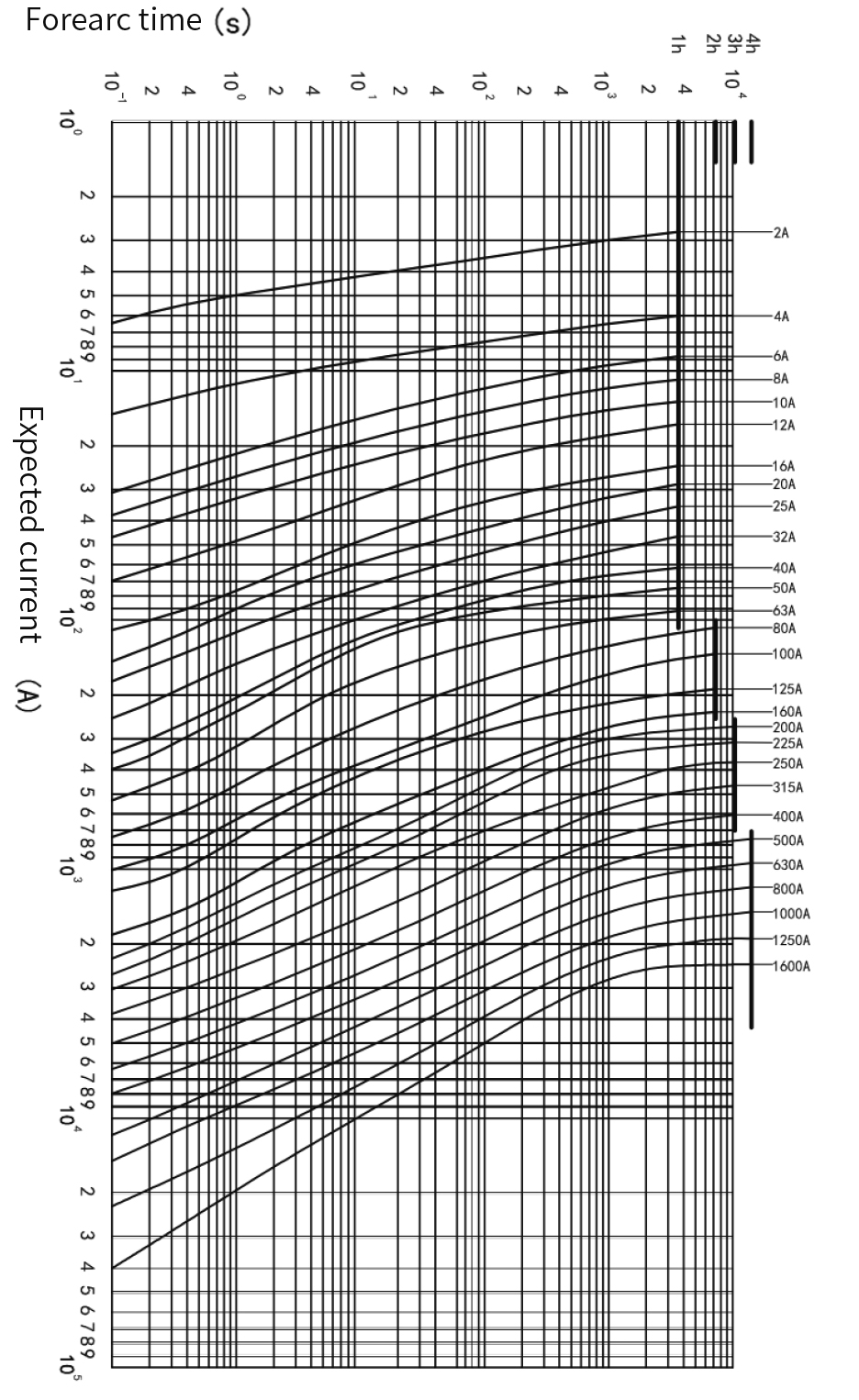

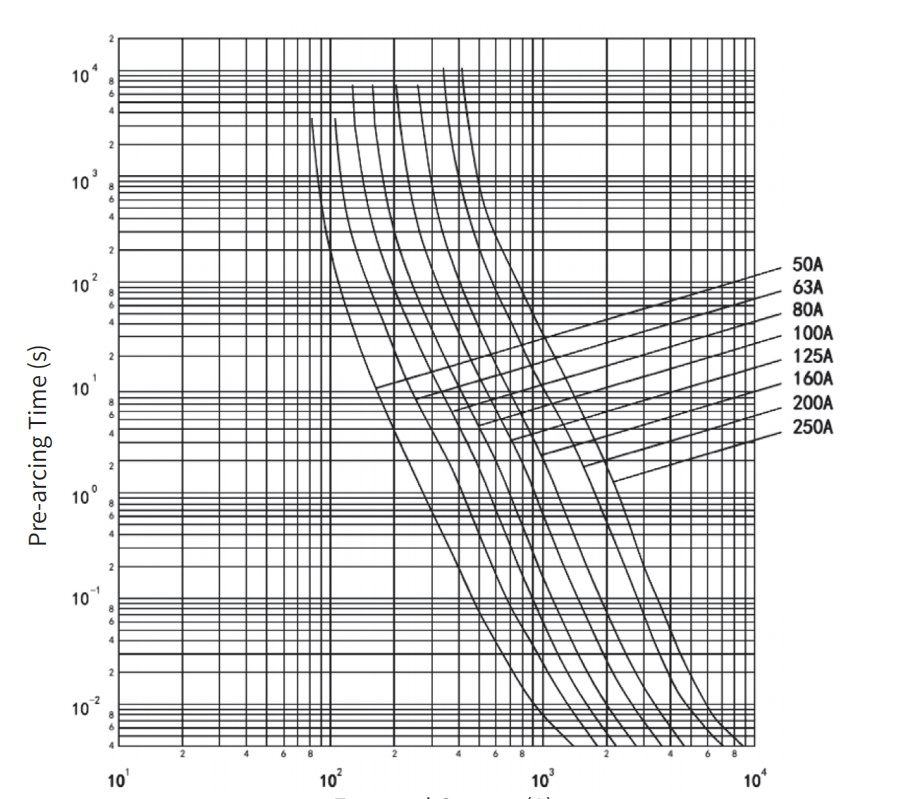

Fuse Curve Diagrams

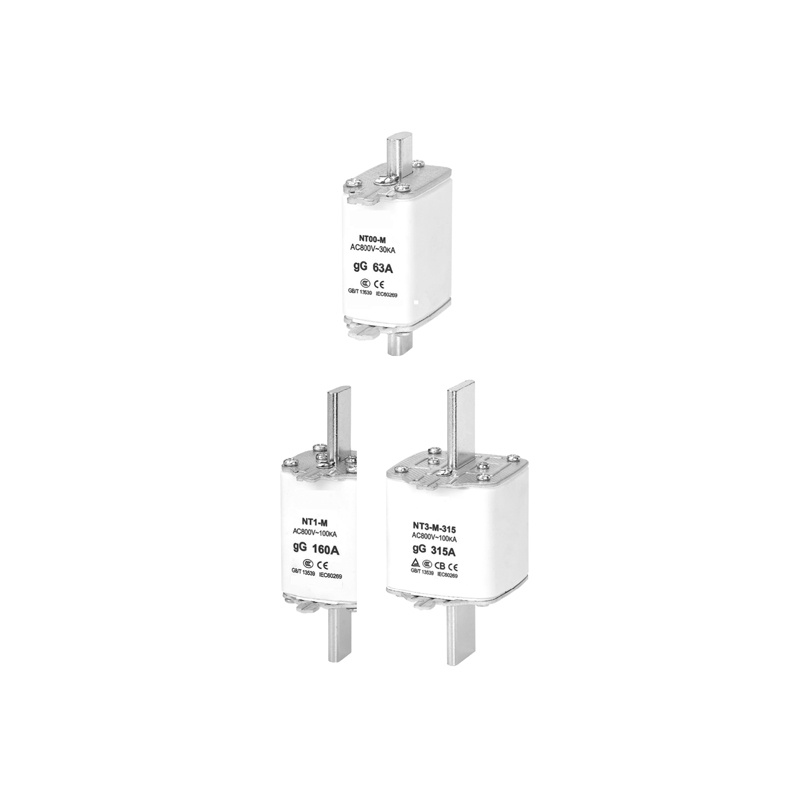

NT-M Fuse Link Series

Suitable for AC systems, rated current 2A~315A. Used for overload and short circuit protection. Performance complies with GB/T 13539.2 / IEC 60269-2.

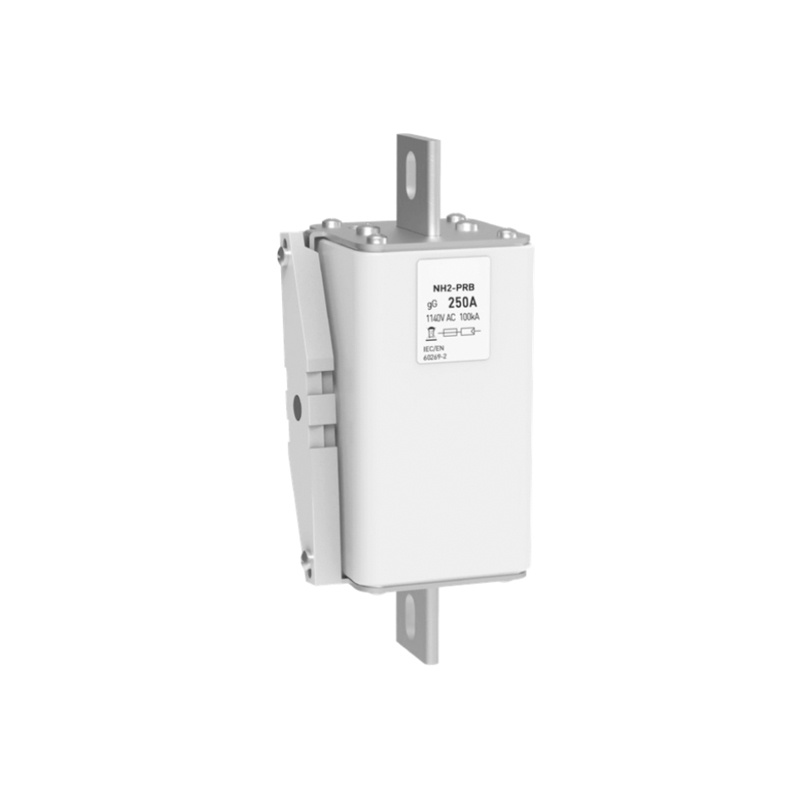

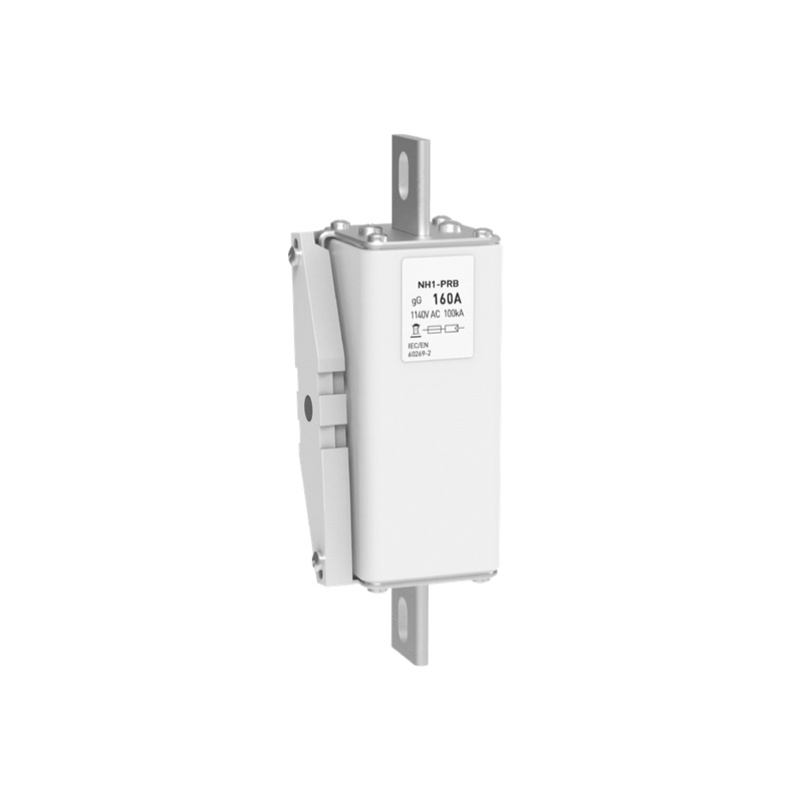

NH-PRB Low Voltage Fuse (1140V)

Rated Voltage	AC 1140V
Rated Current	50A - 400A
Breaking Capacity	AC 100kA
Standard	GB/T 13539.2 / IEC 60269-2

Normal Working Conditions

1. Humidity: At 40°C, relative humidity ≤ 50%. At 20°C, relative humidity ≤ 90%.
2. Temperature: Normal working range -5°C to 40°C. Application allowed from -40°C to 80°C.
3. Altitude: Up to 2000m (Standard). Up to 5000m for specific models. Above 2000m, temperature and current ratings may require adjustment.
4. Flame Retardant: Grade UL94 V-0.

Frequently Asked Questions

What is the main application of these knife-type fuses?

They are designed for AC systems to provide overload and short-circuit protection for low voltage turnkey solution equipment.

What standards do these products comply with?

All products follow the GB/T 13539.2 and IEC 60269-2 performance standards.

What does the "gG" category mean?

The "gG" category indicates full-range breaking capacity fuses for general applications, protecting against both overloads and short circuits.

How does altitude affect the fuse performance?

For every 100m increase above 2000m, the temperature rise increases by approx 0.5K, while ambient temperature decreases by about 0.5°C. In closed environments, rated current may need reduction.

What are the flame retardant requirements for these fuses?

Combustible materials used in the fuses, including plastics, meet the UL94 V-0 flame retardant grade.

What is the maximum rated voltage available?

The PRB and P series offer protection for high voltage AC systems up to 1140V.
