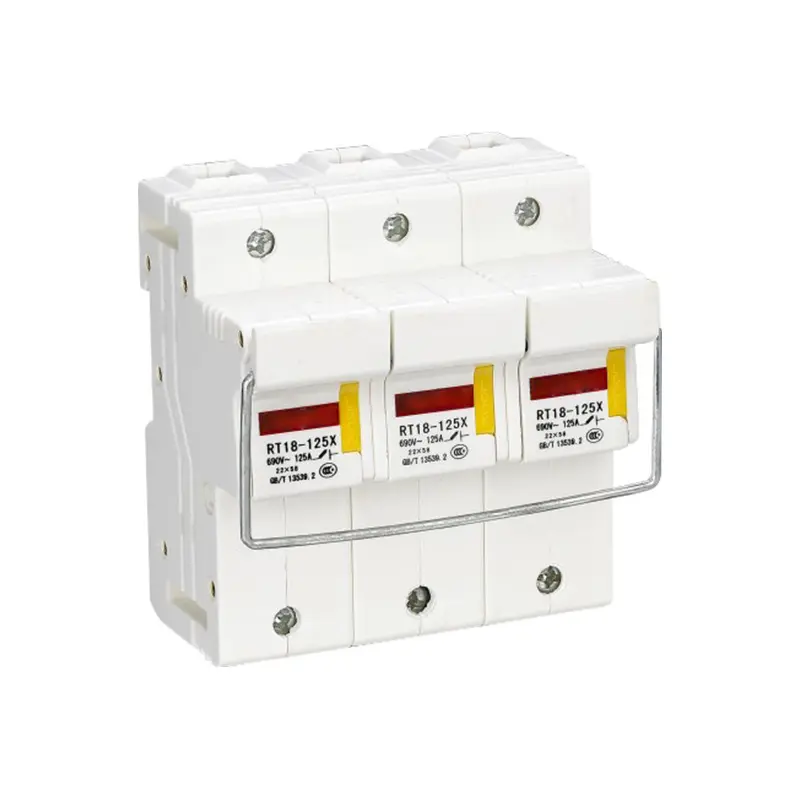

ODM RT18 Cylindrical Cap Fuse Manufacturers, Factories

RT18 cylindrical cap fuse is suitable for AC 50Hz power distribution devices with a rated voltage up to 500V and a rated current up to 125A for overload and short circuit protection.

Send Inquiry

Product Description

Product Specification

Product Name	Dimensions	Type	Rated Current (A)
RT1418	M1038	T	2
RT14: RT14 Type RT18: RT18 Type RT1418: RT14 & RT18 Type	M1038: 10×38 M1451: 14×51 M2258: 22×58	T: Fuse Link	2A, 4A, 6A, 8A, 10A, 12A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A

RT18 Fuse Base Parameters

Product Name	Specification	Type	Poles	Indicator Light	Feature
RT18	32	Z	2	With Light	B (White)
-	32 Type	Z: Base	1P, 2P, 3P, 4P	Default: No Light ×: With Light	Default: Gray B: White

Product Name	Specification	Type	Poles	Indicator Light
RT18	63 / 125	Z	2	With Light
-	63 Type 125 Type	Z: Base	1P, 2P, 3P, 4P	Default: No Light ×: With Light

RT18A-32 Fuse Base

Product Name	Specification	Type	Poles	Indicator Light
RT18A	32	Z	2	With Light
-	32 Type	Z: Base	1P, 2P, 3P	Default: No Light ×: With Light

RT18 Cylindrical Cap Fuse is a professional protection component designed for the core demand of reliable safety protection. It is tailored for AC 50Hz power distribution network and can easily cope with rated voltage up to 500V and rated current up to 125A, becoming an indispensable safety barrier in industrial control cabinets, distribution boxes, motor start centers and various electrical equipment.

Fast Protection: Provides accurate and fast overload and short circuit protection, melting in a very short time to cut off fault current.

Durable Design: Compact cylindrical cap structure ensures flexible installation in space-constrained cabinets.

Heat Dissipation: Engineered for excellent electrical contact stability and heat dissipation performance.

The RT18 Cylindrical Cap Fuse provides powerful overcurrent protection with a simple and efficient design. It is a key component to ensure the long-term stable operation of electrical equipment and improve the overall safety and reliability of the system.

Frequently Asked Questions

What is the application range of RT18 fuses?

They are designed for AC 50Hz networks with rated voltages up to 500V and currents up to 125A, commonly used in industrial control cabinets and distribution boxes.

Do the fuse bases come with indicators?

Yes, RT18 fuse bases are available in both standard versions and versions with indicator lights (indicated by the "×" symbol in the specification).

What are the available dimensions for the fuse links?

The common dimensions include 10x38mm (M1038), 14x51mm (M1451), and 22x58mm (M2258).

How many poles are available for the RT18 base?

The RT18 base typically supports configurations of 1P (default), 2P, 3P, and 4P.

What colors are available for the RT18-32 base?

The standard color is Gray, but a White version (Model B) is also available.

What kind of protection does the RT18 fuse provide?

It provides precise overload and short-circuit protection by quickly melting the internal fuse link to cut off abnormal current loops.
