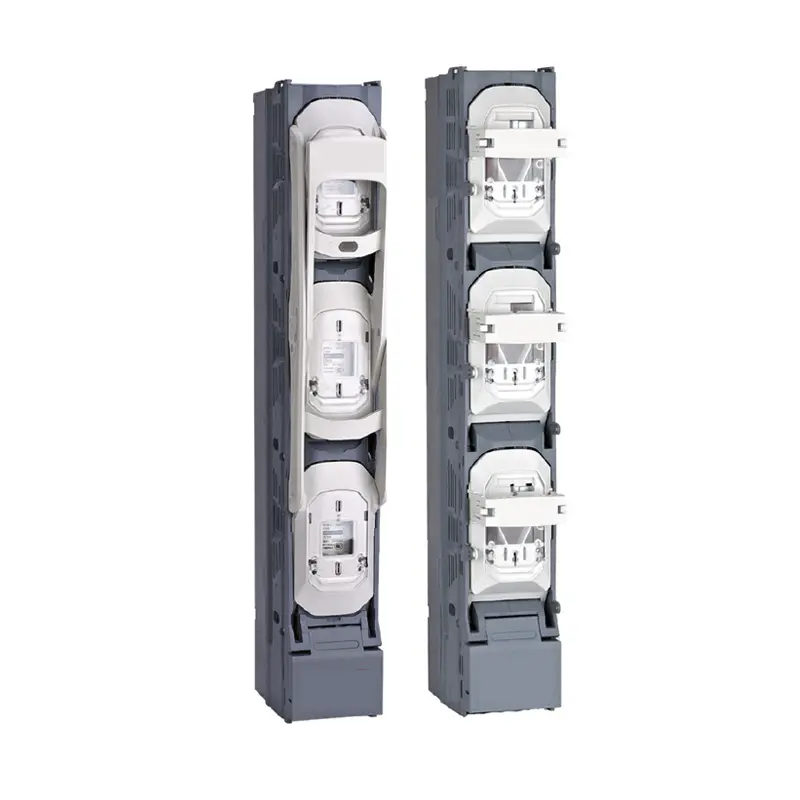

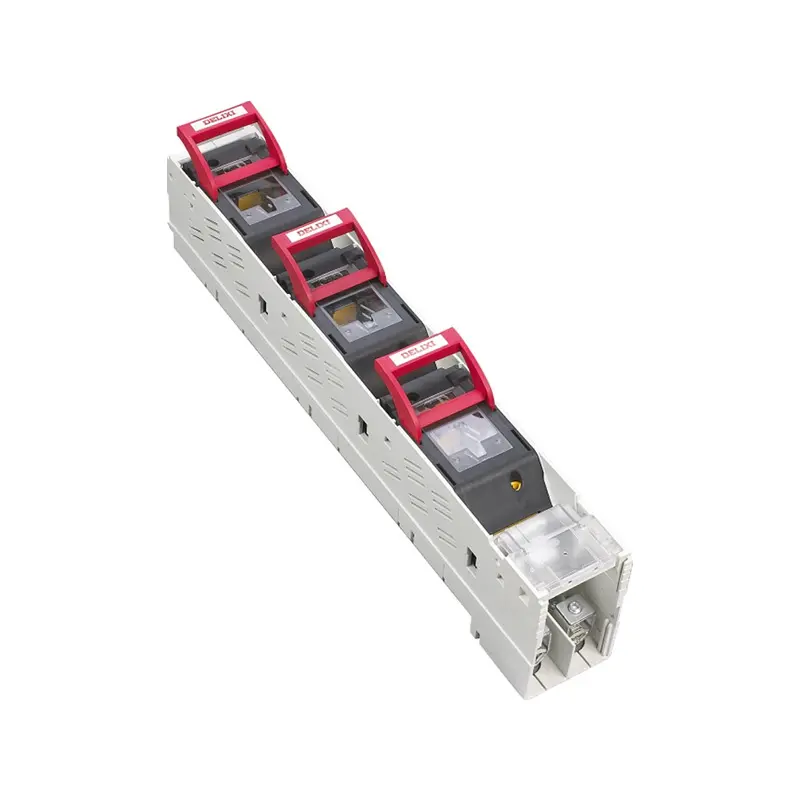

HR16 Series Strip Fuse Disconnector It has 6 utility model patents and 4 appearance patents, which can provide a more safe and convenient installation and operation mode for cable branch boxes, American box transformers, etc. Strip Fuse Disconnector DNH18 Series integrates the design concept of independent innovation, with a novel appearance and upgraded function.

Send Inquiry

Product Description

HR16 series strip fuse disconnectors are suitable for circuits with a rated frequency of 50Hz, a rated working voltage of 500/690V, and a rated working current of up to 630A. They are mainly used in distribution circuits and motor circuits with large short-circuit currents as power switches, disconnectors, and AC circuit short-circuit protection. This series of products has a variety of optional wiring methods, integrated transformer design, and provides a variety of functional modules to meet the needs of different users.

The HR16 series has added installation positioning blocks and protection bosses, optimized the fuse core installation module, added cooling slots and rotating shields to ensure the safety and reliability of the equipment. The unique logo design makes it more distinctive and enhances the overall competitiveness of the product.

Selection Guide

Product Name	Conventional heating current	How to operate	Fuse link combination type
CDHR16	160	L	DT
	↓	↓	↓
	160:160A 250:250A 400:400A 630:630A	L: Joint, three-phase simultaneous operation Default: Split, single-level operation possible	DT: With fuse Default: No fuse

Ordering Information

Product Name	Current (A)	How to operate	Order Number	Fuse link type
CDHR16-160L	160	Three-phase simultaneous	CDHR16160L	Without fuse
CDHR16-160	160	Single-stage operation	CDHR16160	Without fuse
CDHR16-250L	250	Three-phase simultaneous	CDHR16250L	Without fuse
CDHR16-400L	400	Three-phase simultaneous	CDHR16400L	Without fuse
CDHR16-630L	630	Three-phase simultaneous	CDHR16630L	Without fuse
CDHR16-160LDT	160	Three-phase simultaneous	CDHR16160LDT	With RT16-00 (NT00) fuse
CDHR16-250LDT	250	Three-phase simultaneous	CDHR16250LDT	With RT16-1 (NT1) fuse
CDHR16-400LDT	400	Three-phase simultaneous	CDHR16400LDT	With RT16-2 (NT2) fuse
CDHR16-630LDT	630	Three-phase simultaneous	CDHR16630LDT	With RT16-3 (NT3) fuse

Technical Parameters

Model	CDHR16-160	CDHR16-250	CDHR16-400	CDHR16-630
Thermal current A	160	250	400	630
Insulation voltage V	800
Number of poles	3P
Short-circuit current	100kA/AC500V, 50kA/AC690V
Use Category	AC-22B
Matching fuse	RT16-0(NT00)	RT16-1(NT1)	RT16-2(NT2)	RT16-3(NT3)

The switch consists of a base and a cover (fusible device). It is a three-phase closed structure and can be operated from the front. Through the transparent plate on the cover, the rated data of the installed fuse and the operating status can be observed. Modular design allows three poles to be opened simultaneously or individually.

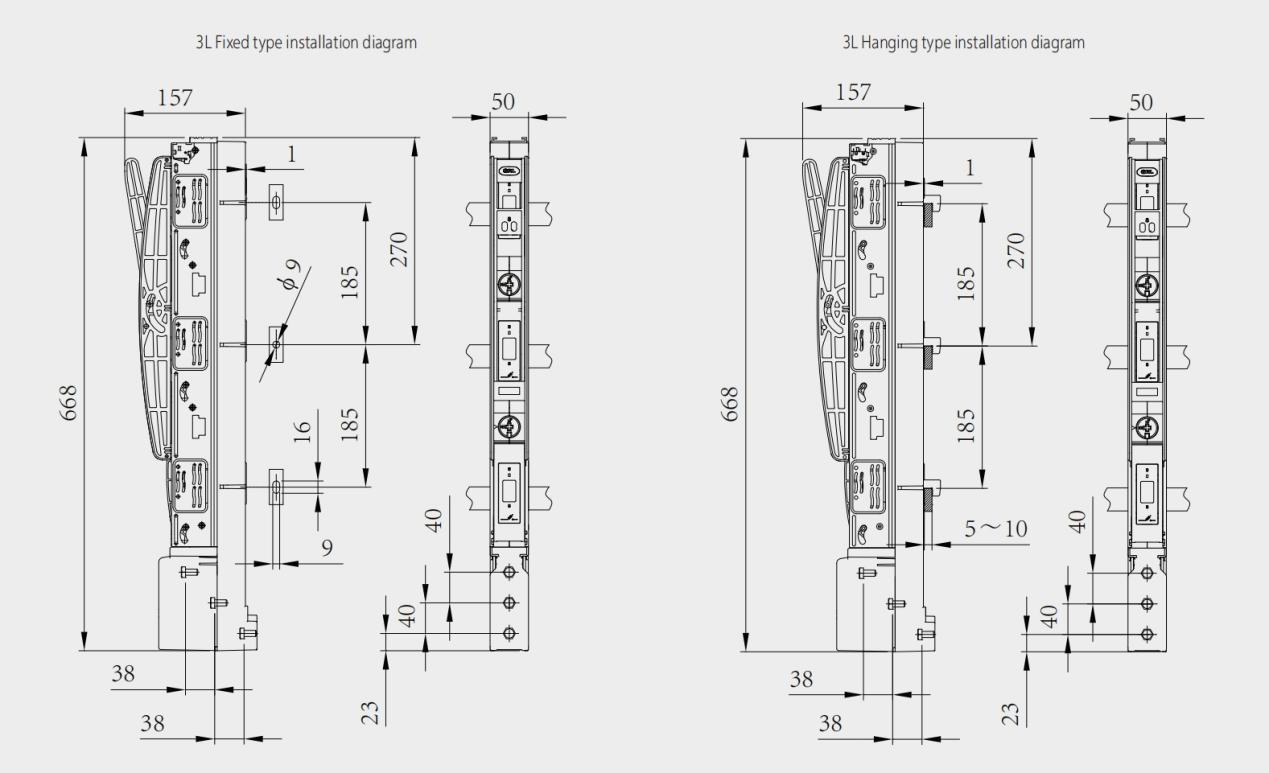

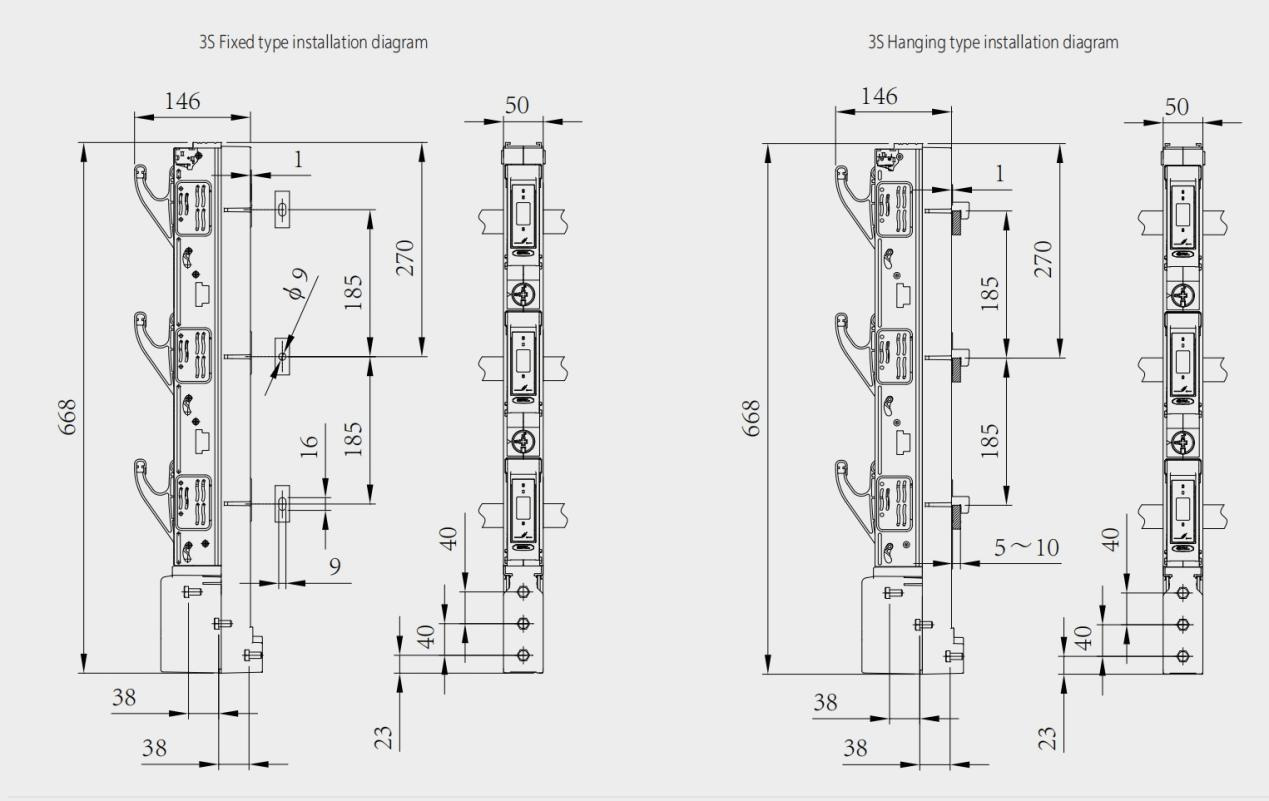

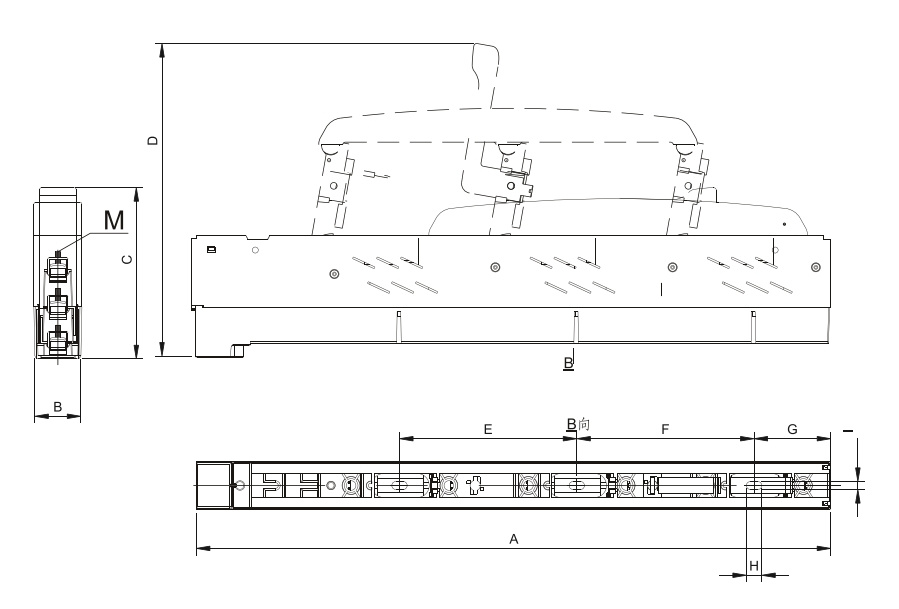

Installation Dimensions (mm)

The HR16 Vertical fuse switch is an optimized vertical switch disconnector. Market research and user feedback were integrated to optimize the product structure. Each design solves practical application challenges.

Model & Meaning

① Enterprise code

② DISCONNECTOR SWITCH

③ Design code

④ Conventional thermal current

⑤ Poles

⑥ "0" fixed type, "1" hanging

⑦ "0" no auxiliary contact, "1" with auxiliary contacts

⑧ "L" three-phase simultaneous, "S" separate operation

⑨ "D" with isolating knife, No "D" with fuse

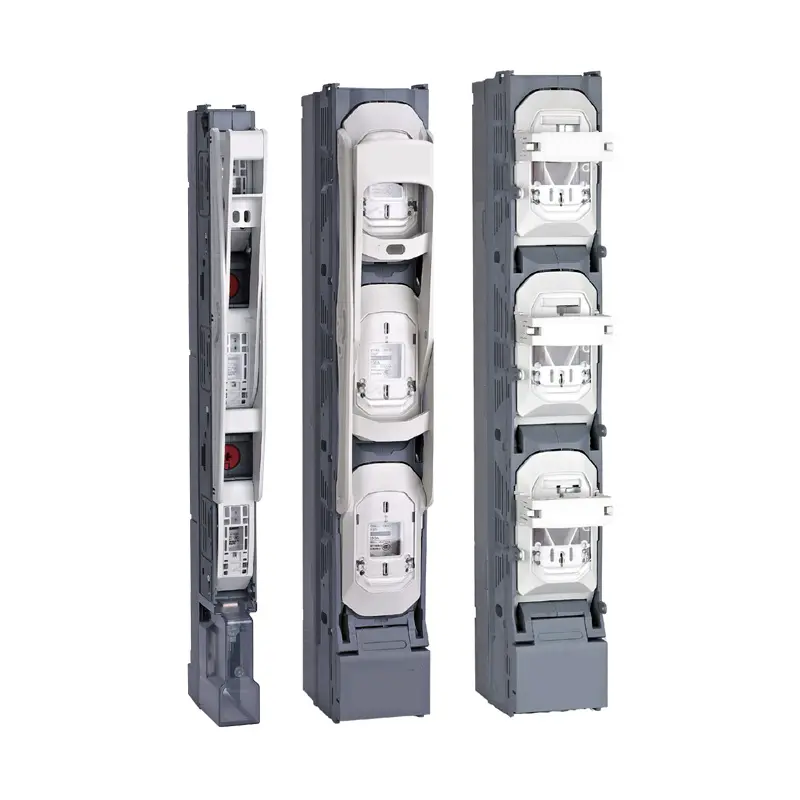

Accessories Display

Industry Application

Widely used in wind power, photovoltaic, energy storage, power grid, communications, high-end equipment manufacturing and other industries.

FAQ - Frequently Asked Questions

What is the primary use of the HR16 series?

They are mainly used in distribution and motor circuits with large short-circuit currents as power switches, disconnectors, and AC circuit protection.

What is the maximum rated current for this series?

The HR16 series can handle a rated working current up to 630A.

Can the switch poles be operated individually?

Yes, the modular design allows the three poles to be opened and closed either simultaneously (L-type) or individually (S-type).

What protection rating does the switch provide?

It provides an IP20 rating when the switch is ON and an IP30 rating when it is OFF.

Which industries typically use the HR16 vertical fuse switch?

It is widely used in wind power, photovoltaic (PV), energy storage, power grids, communications, and high-end equipment manufacturing.

Are auxiliary modules available for monitoring?

Yes, electronic fuse monitors (EFM) and signal feedback micro-switches can be added to the unit.
